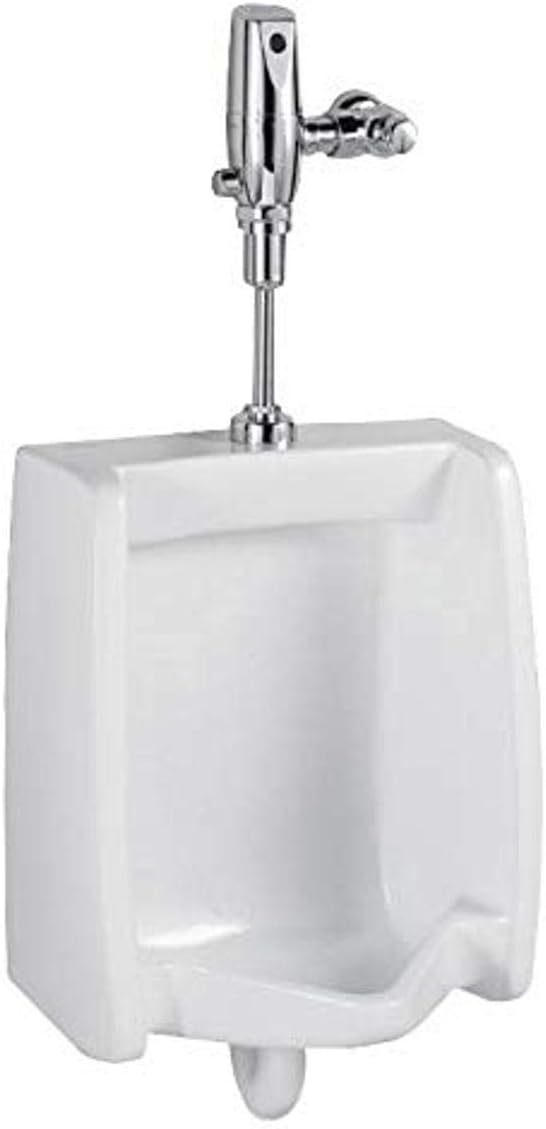

AMERICAN STANDARD 6501610 Washbrook 1.0 GPF Wall Hung High Efficiency Urinal

Product Description

The American Standard 6501610 Washbrook is a wall hung high efficiency urinal that uses 1.0 gallon per flush. It is made of durable porcelain and features a washout flushing action. This urinal is compatible with an electronic flushometer valve and includes a flush valve and bottom strainer.

• Constructed from porcelain for durability.
• Designed for electronic flushometer valve integration.
• ADA compliant for accessibility.

Product Highlights

This urinal is designed for commercial use, ensuring efficiency and ADA compliance. Its high-efficiency flushing mechanism helps conserve water while providing reliable performance.

Product Information

Standard Information

• Brand: American Standard
• Model Number: 6501610

Technical Specifications

• Overall Height: 42.25 inches
• Overall Width: 18.87 inches
• Overall Length: 14.125 inches
• Spud Placement: Top
• Spud Connection Size: 3/4 inches
• Flow Rate: 1 GPF
• Operating Pressure: 20-125 PSI
• Material: Vitreous China
• Installation Type: Wall Mounted
• Warranty: 5 Year Limited Warranty
