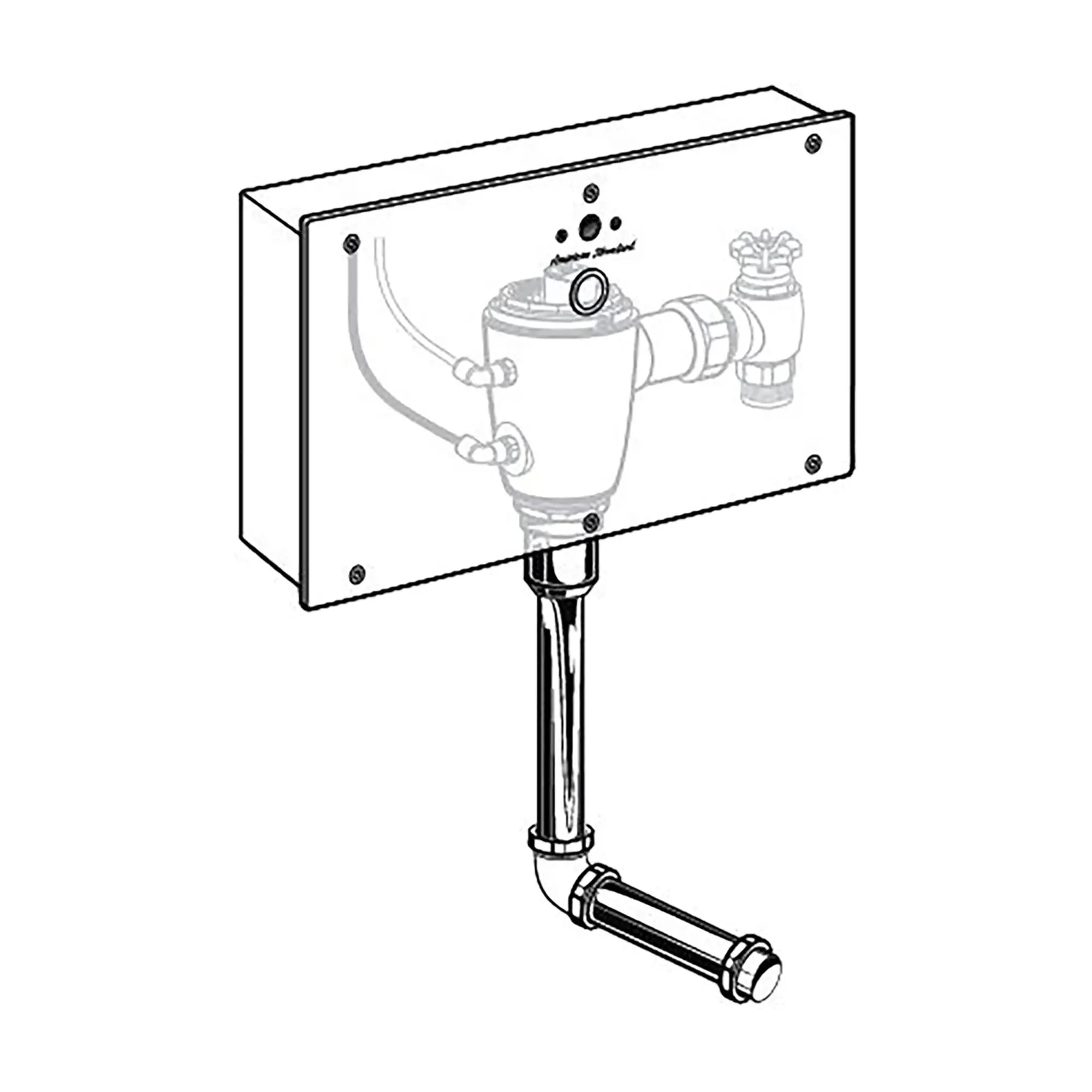

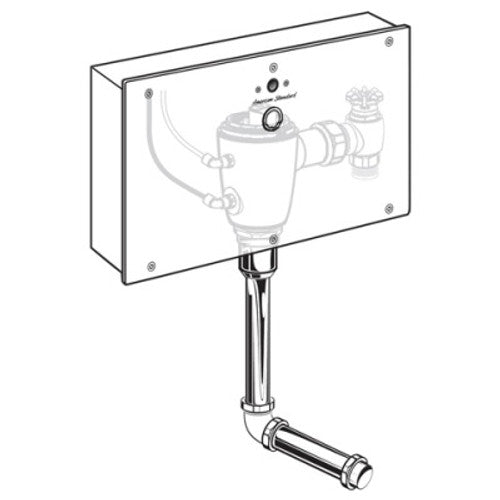

American Standard 606B510.007 Selectronic Concealed Urinal Flush Valve With Wall Box

Product Description

The American Standard 606B510.007 Selectronic is a concealed urinal flush valve designed for urinals with a three-quarter inch back spud. This valve features a wall box with a vandal-resistant stainless steel cover. It operates touchlessly and includes DynaClean self-cleaning wiper spring technology for effective maintenance.

• Designed for urinals with three-quarter inch back spud
• Touchless operation for easy use
• Includes vandal-resistant wall box

Product Highlights

The flush valve is equipped with a complete mechanical manual override. Constructed with a dezincification-resistant brass alloy and a pressure compensation feature, it guarantees precise flush volume. Ideal for commercial applications, this product enhances bathroom usability while ensuring compliance with ADA standards.

Product Information

Standard Information

• Brand: American Standard
• Manufacturer Part Number: 606B510.007

Technical Specifications

• Flow Rate: 1 GPF
• Valve Type: Piston
• Spud Connection: Rear
• ADA Compliant: Yes
• Barrier Free: Yes
• Collections: Selectronic
• Touchless: Yes
• Gallons Per Flush (min-max): 1 GPF
• Number of Output Valves: 1
• Height: 8.31 inches
• Length: 19.875 inches
• Width: 16 inches
• Residential or Commercial: Commercial
• Product Type: Urinal Flush
