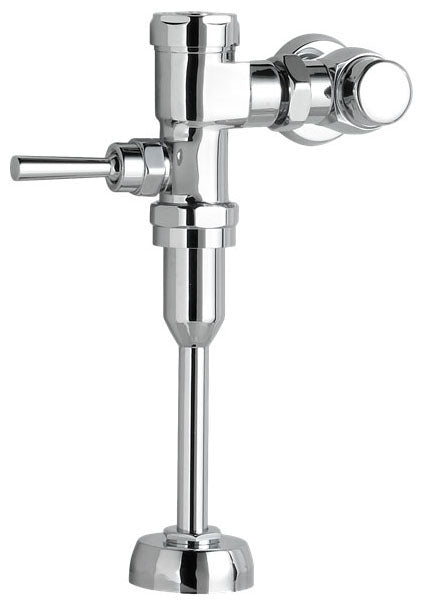

American Standard 6045101.002 Manual Urinal Flush Valve 1.0 GPF 3/4 Inch

Product Description

The American Standard 6045101.002 is a manual urinal flush valve designed to manage water use efficiently. It features a piston operation that ensures accurate flushing. Installation is straightforward, making it suitable for commercial and high-use environments.

• Flow rate of 1 gallon per flush (GPF)
• Durable cast brass construction for longevity
• ADA-compliant non-hold open handle

Product Highlights

This valve provides reliable performance with a self-cleaning mechanism that reduces maintenance efforts. The design includes a vacuum breaker to prevent backflow, ensuring hygiene and efficiency.

Product Information

Standard Information

• Manufacturer: American Standard
• MPN: 6045101.002

Technical Specifications

• Type: Exposed, Self-Cleaning
• Actuation Type: Non-Hold-Open Handle
• Body Configuration: Manual Top Spud
• Inlet Size: 3/4 Inch
• Outlet Size: 3/4 Inch
• End Connection: Threaded x Threaded
• Spud Size: 3/4 Inch
• Body Material: Cast Brass
• Mounting Type: Top Mount
• Flow Rate: 1 GPF
• Operating Pressure: 20 PSI (Flowing), 80 PSI (Static)
• Overall Height: 13-1/2 Inch

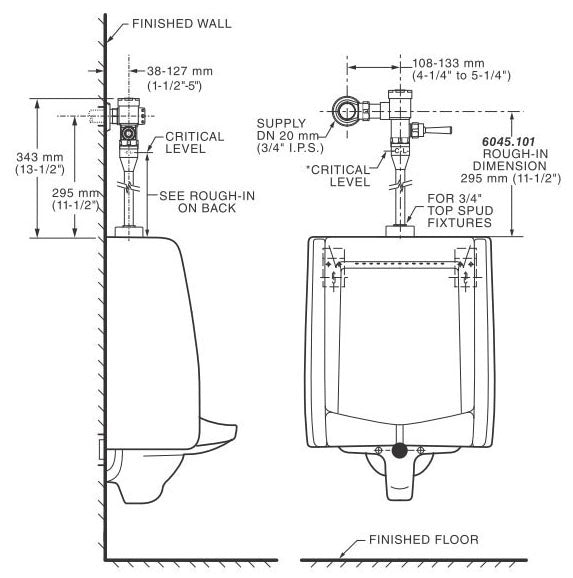

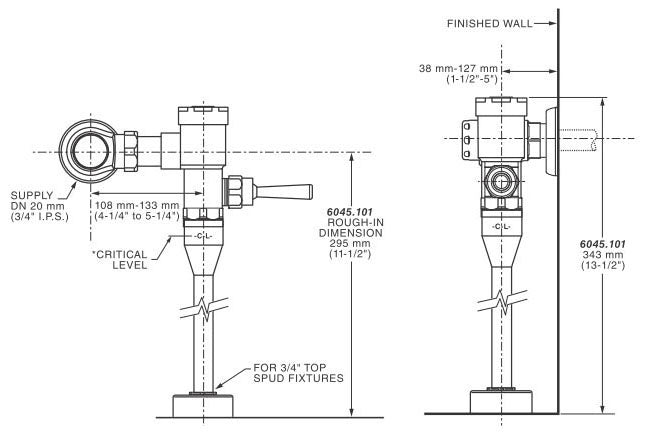

• Rough-In Size: 11-1/2 Inch
• Standards: ADA, ASME A112.19.2, ASSE 1037, ANSI A117.1, EPA
