American Standard 4869001 Regalyn Cast Iron Wall-Hung Sink With Center Hole Only

Product Description

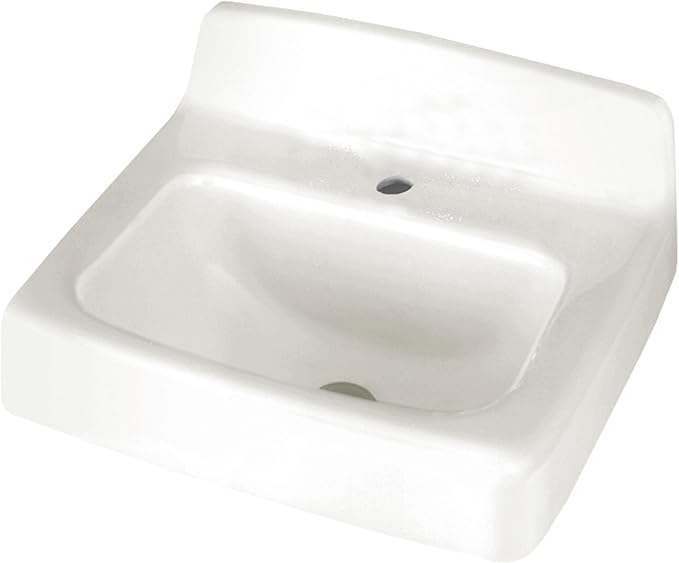

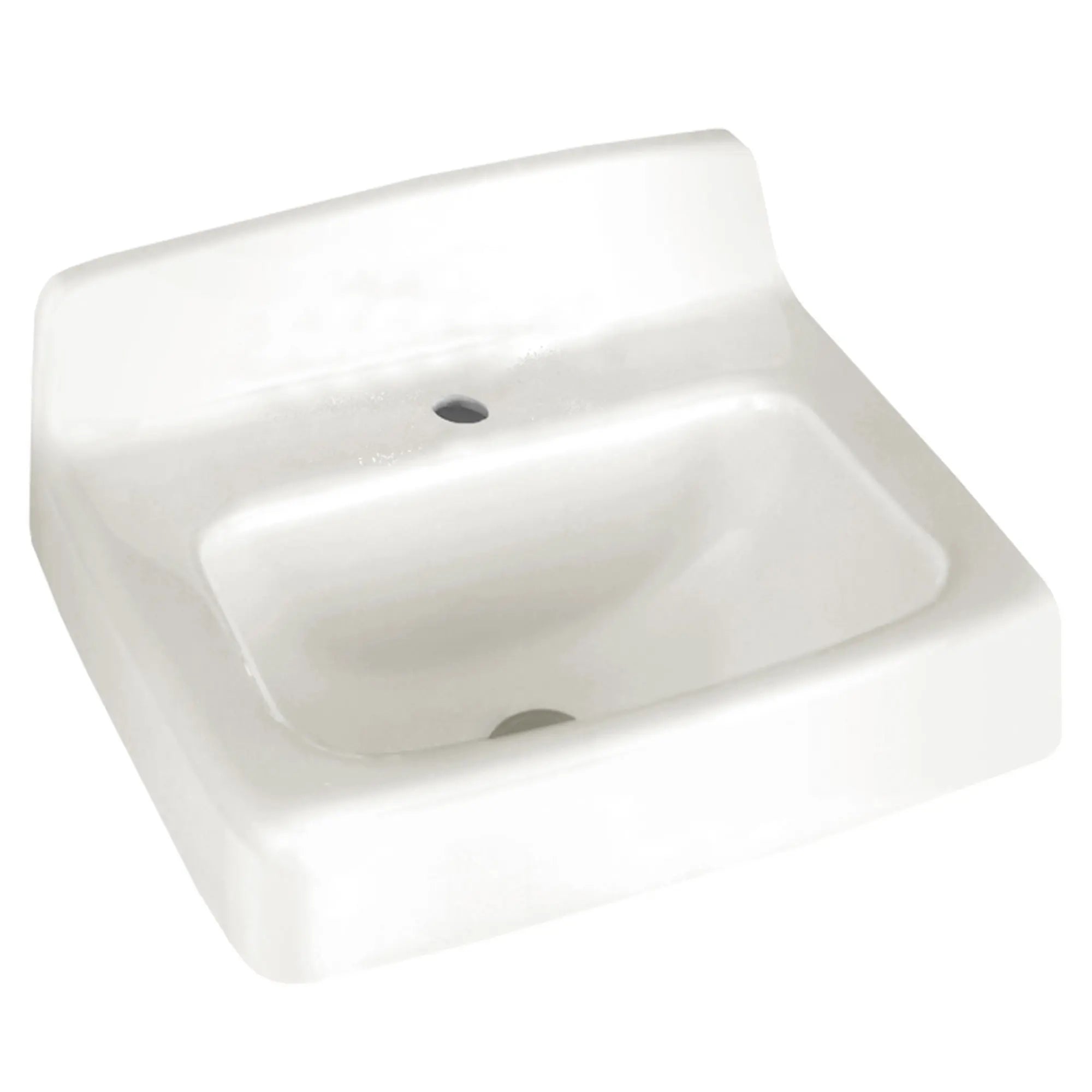

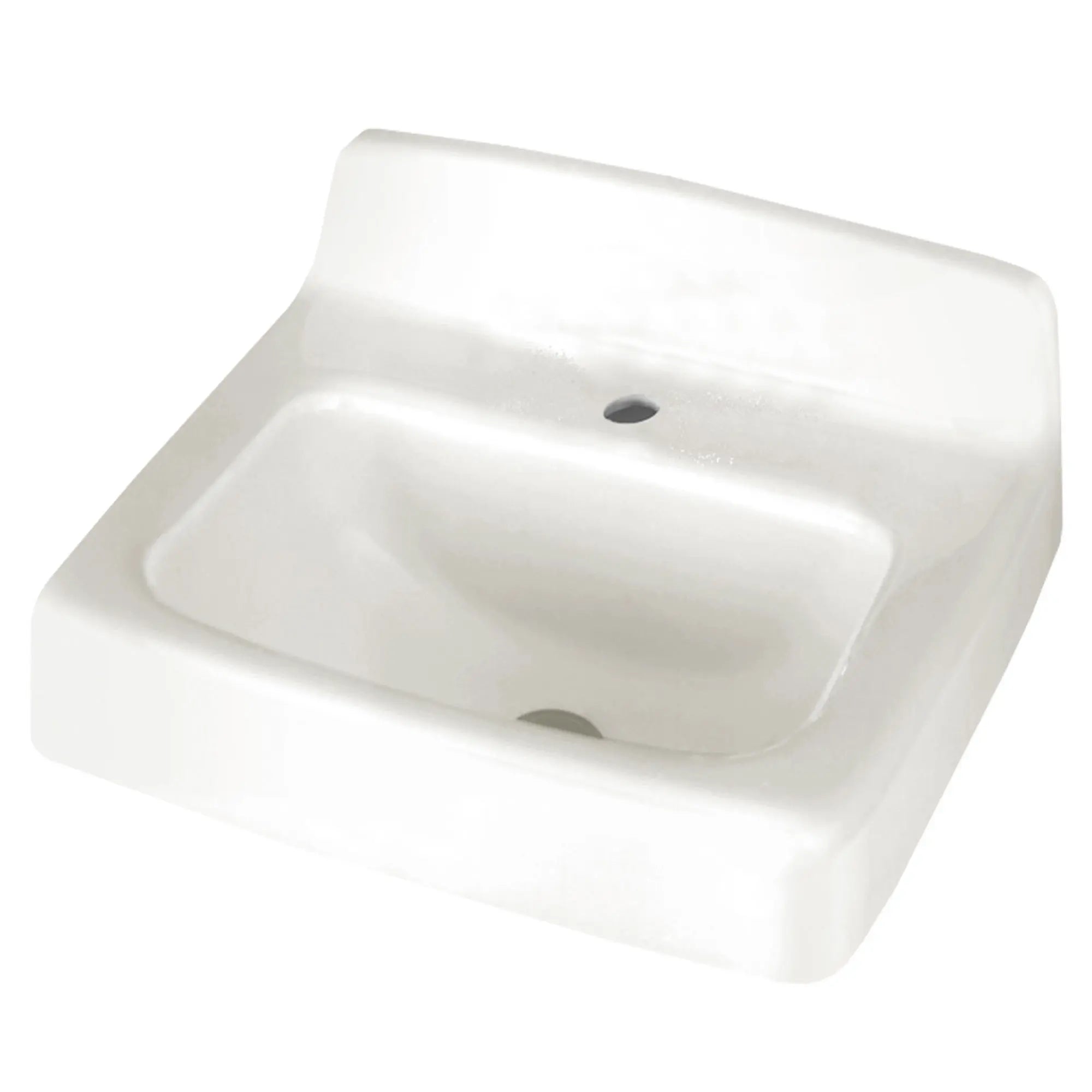

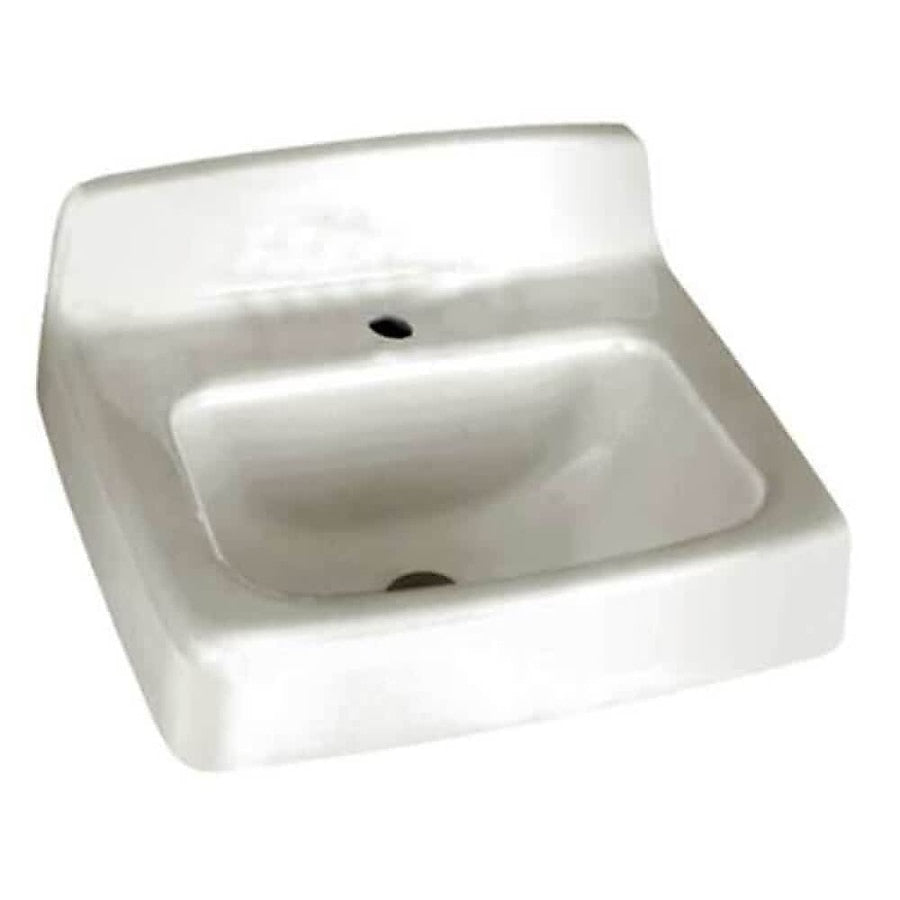

The AMERICAN STANDARD 4869001 Regalyn Cast Iron Wall-Hung Sink combines durability and beauty. Constructed of enameled cast iron with a glossy porcelain finish, this wall-mounted sink is suitable for commercial and residential applications. It features a center hole for a single faucet and a front overflow. Ideal for hospitals, schools, and hotels.

• Enameled cast iron material
• Glossy porcelain finish
• Supplied with hanger

Product Highlights

Enameled cast iron sink with glossy finish, center faucet hole, and front overflow.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 4869001

Technical Specifications

• Model: 4869001.020
• Material: Enameled cast iron material
• Finish: Glossy porcelain finish
• Faucet Holes: Center hole only
• Supplied With: Hanger
• Overflow: Front overflow
• Mounting Location: Wall Mounted
• Number of Faucet Holes: 1
• Drain Placement: Rear
• Number of Basins: 1
• Overall Sink Length: 20 Inch
• Overall Sink Width: 18 Inch
• Overall Sink Height: 11.625inch
• Interior Depth: 6 Inch
• Interior Length (left to right): 15.5 Inch
• Interior Width (front to back): 9.875inch
• Brand: American Standard
• MPN: 4869001.020
• Manufacturer: American Standard
• Series: Regalyn
• UPC / GTIN: 033056728673
• Installation Type: Wall-Mount
• Drain Type: Grid
• Hole Count: 1
• Shape: Square
• Overall Height: 11-5/8" (bottom of sink to the top of the rim)
• Overall Width: 18" (back outer rim to the front outer rim)
• Basin Width: 9-7/8" (back inner rim to the front inner rim)
• Basin Length: 15-1/2" (left inner rim to the right inner rim)
• Basin Depth: 6" (center of basin to the rim)
• Drain Outlet Size: 1-1/4"
• Mounting Type: Single Hole
• Sink Shape: Rectangular
• ADA: Yes
• Approved for Commercial Use: Yes
• Collection: Regalyn
• ADA Compliant: Yes
• ANSI: ANSI A112.19.2, ANSI A117.1
• ASME: ASME A112.19.1
• Application: Commercial
• CARB OTC LEED Compliant: No
• CSA Certified: CSA B45.2
• Color Finish Category: Whites
• Color Finish Name: White
• Depth: 17-15/16
• Drain Opening: 1-1/4
• GSA Approved: No
• Length: 20
• NSF Certified: No
• Number of Bowls: 1
• Number of Holes: 1 Hole
• Overflow Included: Yes
• Sink Bowl Size: 15-1/2 in x 9-7/8 in
• Sink Depth: 11-5/8
• Sink Installation Type: Wall Mount
• Sink Material: Cast Iron
• Sink Size Range: 20 in - 25.99 in
• UPC: 033056728673
• Width: 18
• Drain Included: No
• Drain Location: Center
• Drain Hole Size: 1-3/4"
• Construction: Cast Iron
