American Standard 3195A.101 Champion Pro Chair Height Elongated Bowl

Product Description

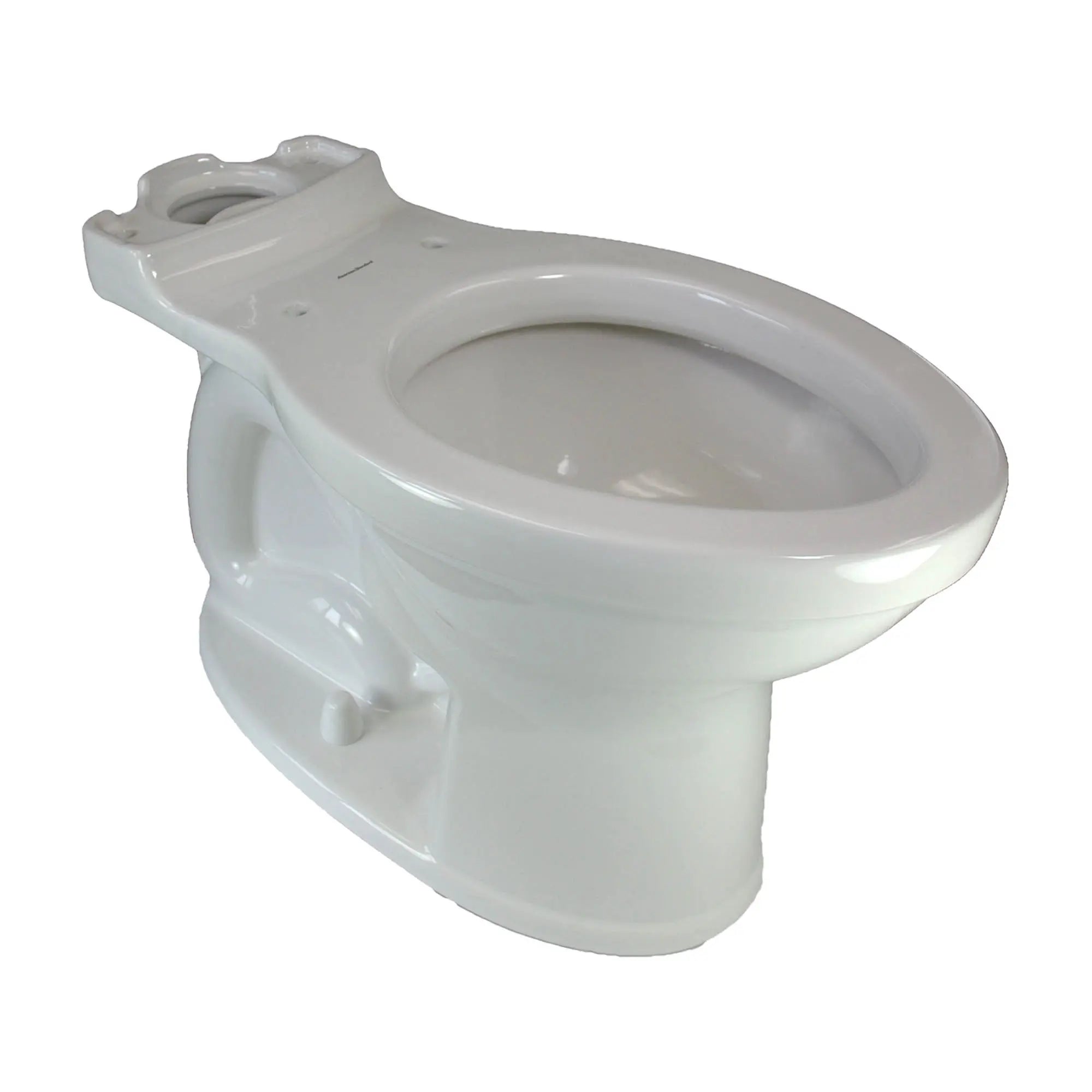

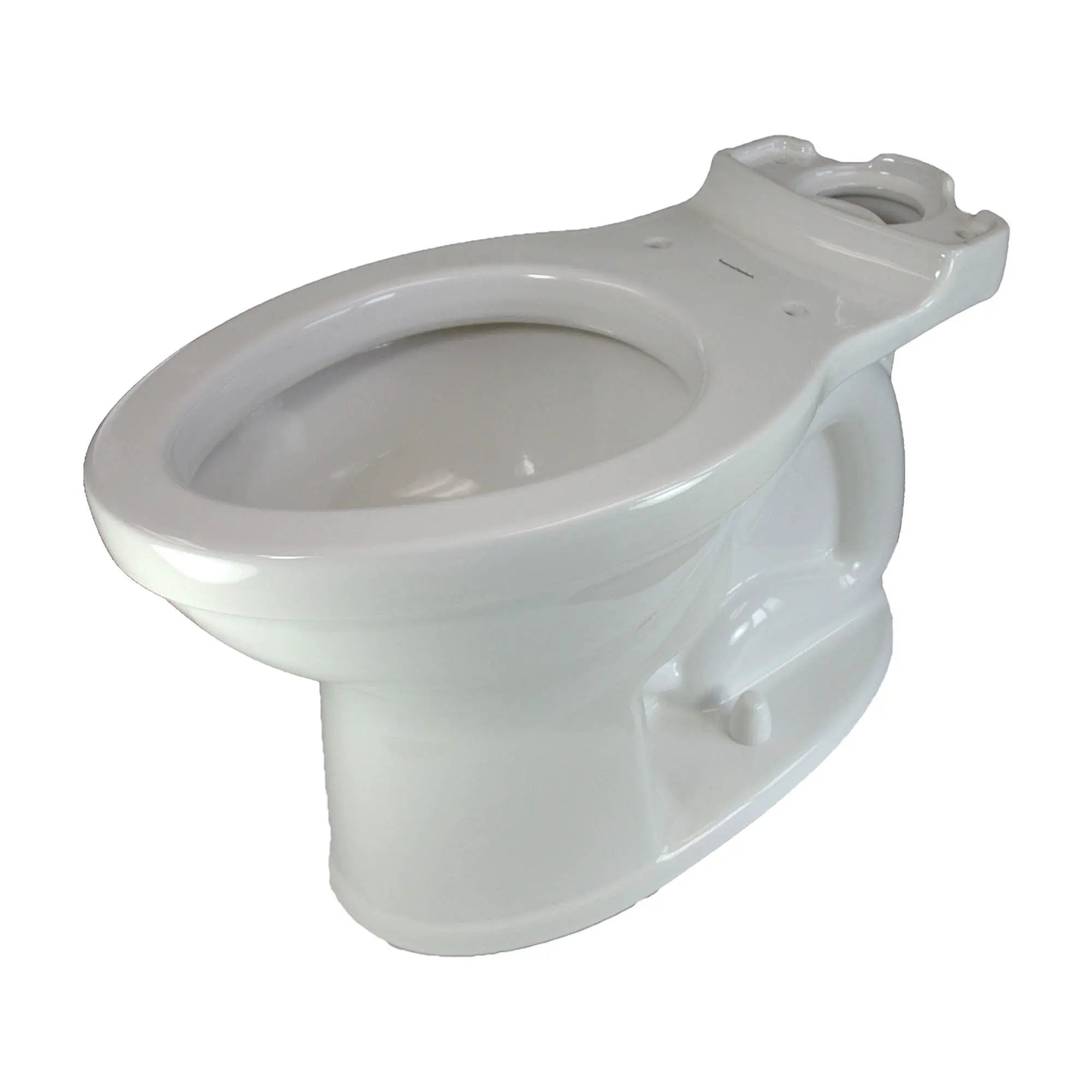

The American Standard 3195A.101 Champion PRO Chair Height Elongated Toilet Bowl is engineered to enhance the features of coordinating tank (sold separately). Chair height provides sitting comfort and standing ease. The EverClean antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria.

• Comfortable design: 16 ½-in. high for enhanced comfort
• EverClean® antimicrobial surface: Protects against bacteria
• Durable material: Made of quality vitreous china

Product Highlights

This Champion PRO toilet bowl features a comfortable chair height, EverClean surface, and durable vitreous china construction. It has a PowerWash rim that scrubs the bowl with each flush.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 3195A.101

Technical Specifications

• Item Shape: Bowl Shape: Elongated
• Toilet Type: Bowl Only
• Flush Technology: Siphonic Jet
• Flushing Type: Not Applicable
• GPF Maximum: 1.6 gpf
• GPF Minimum: 1.28 gpf
• Toilet Trapway Diameter: 2-3/8 in
• Bidet Spray Type: Yes
• Everclean: Yes
• Overall Height: 16-1/2" (bottom of the base to highest point on the bowl)
• Overall Length: 23-3/16" (back of the bowl to front of the rim)
• Overall Width: 14" (furthest point on the left to the furthest on the right)
• Bowl Height: 16-1/2" (bottom of the base to the rim)
• Rough-in: 12" (wall behind toilet bowl to center of waste outlet hole in floor)
• Flush Valve Size: 4" (diameter of the inlet for water entering bowl from tank)
• Trapway Size: 2-3/8" (diameter of the outlet for water/waste exiting the bowl)
• Water Area: 9" X 8" (inner rim dimensions length X width)
• Water Depth (From Rim): 6-1/2"
• Bowl Shape: Elongated
• Configuration: Bowl Only
• Design Features: Chair Height
• Flush Type: Siphon Jet
• Installation Type: Floor Mounted
• Material: Vitreous China
• Seat Front: Closed
• Theme: Traditional
• ADA: Yes
• Approved for Commercial Use: Yes, No
• Collection: Everclean, Champion Pro, Cadet Pro, Cadet
• Series: Champion
• Dimensions: H: 16.5 in
• W: 14 in
• D: 30.25 in
