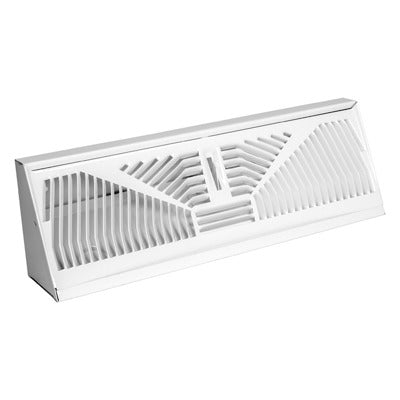

American Metal Products 3015W15 Baseboard Diffuser 15 in White

Product Description

The AMERICAN METAL PRODUCTS 3015W15 is a perimeter baseboard diffuser designed to distribute conditioned air along the floor line of a room. Constructed from painted stamped steel in a white finish, it features a sunburst pattern face with 1/2-inch fins set at a 40-degree angle for controlled airflow direction. A metal lever allows field adjustment of the fins without tools. Overall dimensions are 15 inches wide, 4.5 inches tall, and 2.75 inches deep, with a 2.75-inch base extension for proper perimeter mounting. This diffuser is installed by HVAC technicians as part of low-velocity baseboard distribution systems in residential and light commercial applications.

This diffuser is suited for perimeter heating and cooling applications where floor-level air distribution improves thermal comfort. The baseboard-style form factor makes it a common choice in rooms with exterior walls, particularly in climates where perimeter heat loss is a primary design concern. The white painted finish allows it to blend with standard baseboard trim. The stamped steel construction provides durability in high-traffic areas. It is typically installed in conjunction with low-profile duct systems or toe-kick plenums where ceiling or sidewall diffusers are not practical.

Key Features

• Sunburst pattern face for aesthetic air distribution at floor level
• 1/2-inch fins set at 40 degrees for directional airflow control
• Metal lever for on-site fin adjustment without additional tools
• Painted stamped steel construction in white for durability and clean appearance
• 2.75-inch base extension for secure perimeter wall mounting
• Overall dimensions: 15 inches wide, 4.5 inches tall, 2.75 inches deep

Compatibility

Designed as an OEM-style replacement or new-installation perimeter baseboard diffuser for residential and light commercial low-velocity HVAC distribution systems.

Installation Notes

Installed by licensed HVAC technicians or qualified mechanical contractors. Power down the air handling system before beginning any diffuser installation or replacement work. Verify rough opening and duct collar dimensions match the diffuser face size before securing. Follow local mechanical codes for duct connection and fastening requirements.

Technical Specifications

• Face Width: 15 inches
• Overall Height: 4.5 inches
• Overall Depth: 2.75 inches
• Base Extension: 2.75 inches
• Fin Size: 1/2 inch, set at 40 degrees
• Material: Painted Stamped Steel
• Finish: White
• Pattern: Sunburst
• Actuator Type: Metal Lever
• Package Quantity: 10 per package
• Package Weight: 24 pounds

Standard Information

• Brand: AMERICAN METAL PRODUCTS
• Manufacturer Part Number: 3015W15
