American Lighting ELV-45-24 LED ELV Driver 27 to 45 W

Product Description

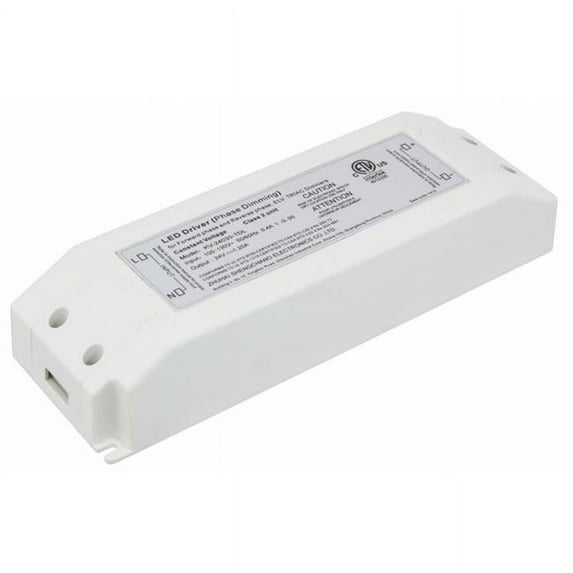

The American Lighting ELV-45-24 is a Class 2 constant voltage slim compact LED ELV driver. This driver supports an input voltage of 100 to 130 VAC and provides a 24 VDC output, with a power rating of 27 to 45 W and 1.87 A. It features a durable plastic housing with integrated terminal blocks and wire cover strain reliefs, and it carries an IP20 level of ingress protection.

• For LED lighting
• Dimmable with standard leading edge dimmers (aka forward phase, MLV, Incandescent, TRIAC) and trailing edge dimmers (aka two wire reverse phase, ELV)
• Standard built-in protections include short circuit, over current, over voltage and over temperature

Product Highlights

This dimmable driver is cETLus Listed for dry locations and RoHS compliant. It is suitable for indoor applications.

Product Information

Standard Information

• Brand: AMERICAN LIGHTING
• Manufacturer Part Number: ELV-45-24

Technical Specifications

• Amperage Rating: 1.87 A
• Application: Indoor Applications
• Height: 1.375 in
• Input Voltage: 100 to 130 VAC
• Length: 7.0625 in
• Manufacturer Part Number: ELV-45-24
• Material: Plastic
• Output Voltage: 24 VDC
• Power Factor: 0.95
• Power Rating: 27 to 45 W
• Series: ELV 24V
• Standards/Approvals: RoHS Compliant, cETLus Listed for Dry Locations, FCC Compliant
• Temperature Rating: -22 to 122 deg F
• Type: Class 2 Constant Voltage Slim Compact LED ELV Driver
• Width: 2.375 in
• Dimmable: Yes
• Light Technology: LED
