American Granby EILPG1002-4BSSNL Pressure Gauge 100 PSI

Product Description

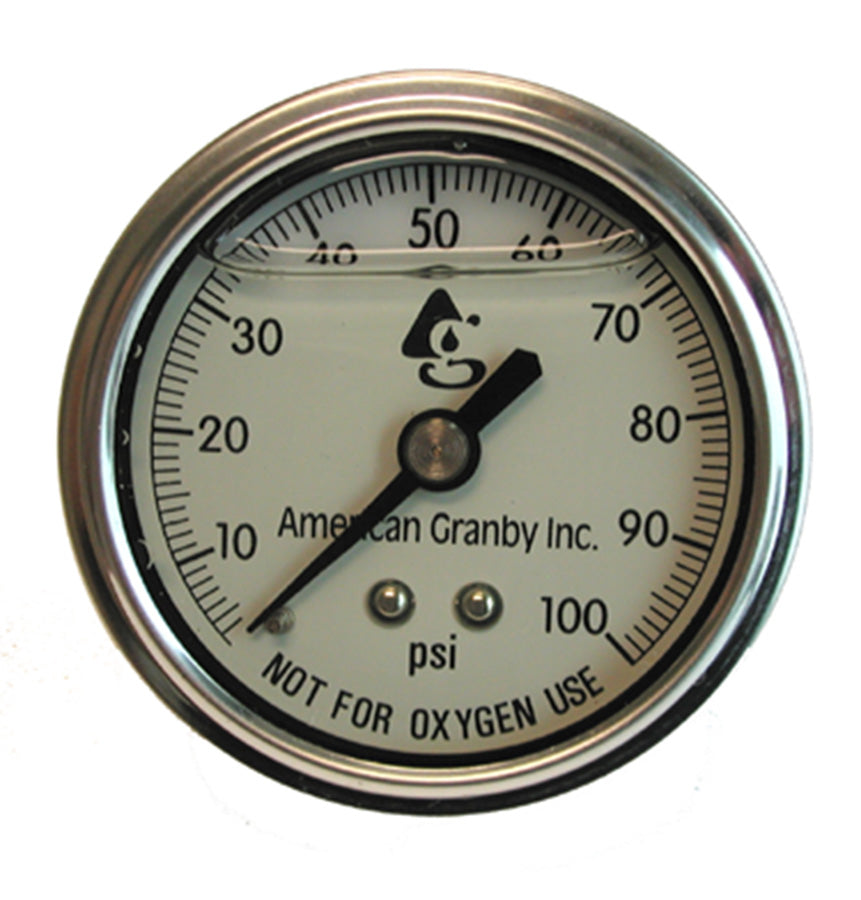

The American Granby EILPG1002-4BSSNL is a glycerine liquid filled 2" pressure gauge with a range of 0-100 PSI. It features a 1/4" MNPT back connection and 2% accuracy. Designed with a steel case and acrylic lens, it is suitable for high vibration applications within a temperature range of 30 to 160 degrees Fahrenheit. It is designed for use with air or water only.

• Glycerine liquid filled gauge
• Great for high vibration, corrosion applications
• 2" dial size

Product Highlights

This liquid filled pressure gauge is designed for high vibration applications and provides accurate pressure readings.

Product Information

Standard Information

• Brand: AMERICAN GRANBY
• Manufacturer Part Number: EILPG1002-4BSSNL

Technical Specifications

• Dial Size: 2"
• Connection: 1/4" MNPT back connection
• Accuracy: 2%
• Case: Steel
• Lens: Acrylic
• Temperature Range: 30 to 160 degrees Fahrenheit
• Bourdon Tube: Phosphor bronze
• Application: For use with air or water only
