Product Description

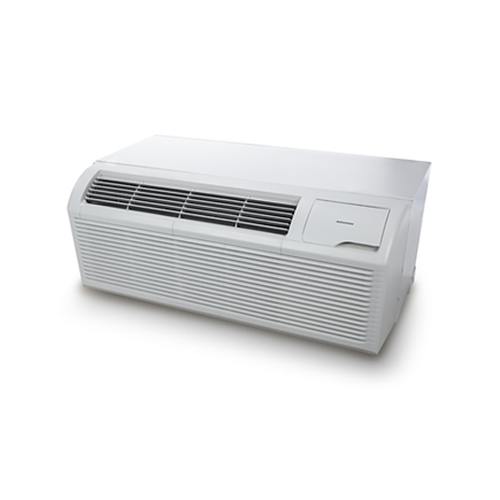

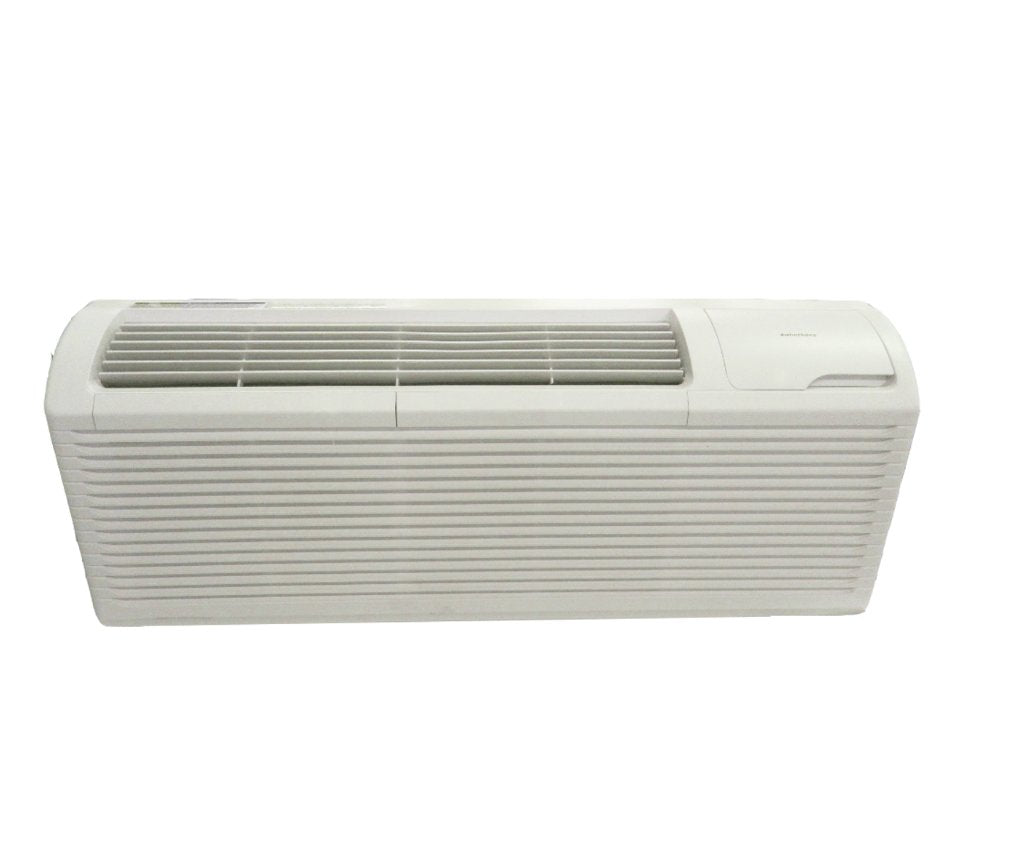

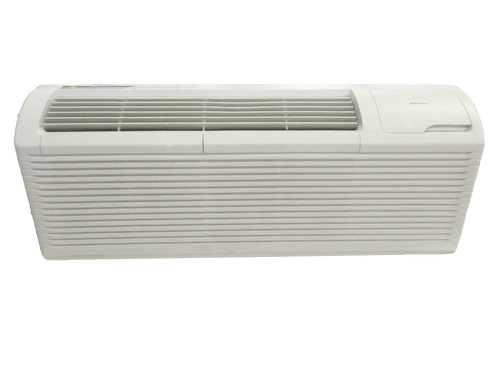

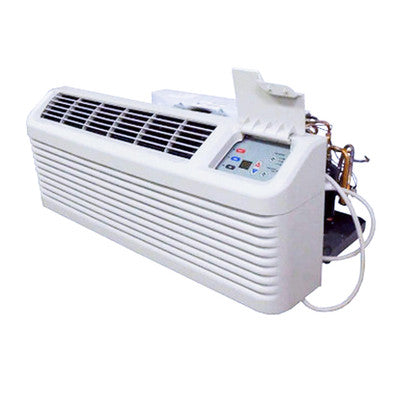

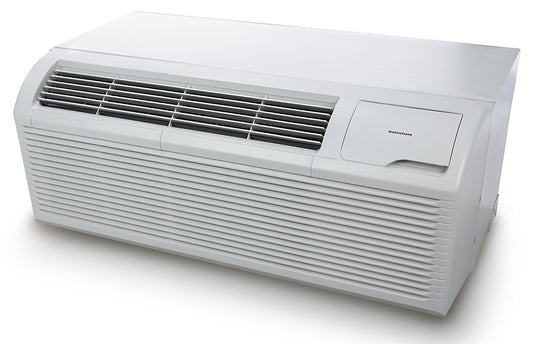

The Amana DHP093J25BA is a PTAC unit offering reliable, high-quality comfort. This unit features R-32 refrigerant, dual fan motors for quiet operation, and an LCDI power cord. It has a 3-speed fan, constant fan option, and is wired thermostat compatible. It operates on 208/230 V and includes easy pull-out filters and a condensate dispersion system.
- R-32 Refrigerant: Offers lower Global Warming Potential (GWP).
- Dual Fan Motors: Provides precise independent fan speed and quiet operation.
- LCDI Power Cord Included: Eliminates the need to match power cord type to unit size.
Product Highlights
This Amana PTAC unit provides efficient cooling and heating with user-friendly features and easy maintenance, ideal for residential and commercial use.
Product Information
Standard Information
-
Brand: AMANA
-
Manufacturer Part Number: DHP093J25BA
Technical Specifications
-
Cooling Voltage: 208 / 230
-
Cooling Capacity (BTU/h): 9,300 / 9,200
-
Cooling Amps: 4.2 / 4.6
-
Cooling Watts: 820 / 810
-
EER: 11.4
-
CFM (cool/wet coil) High: 363
-
CFM (cool/wet coil) Low: 300
-
CFM (dry) High: 363
-
CFM (dry) Low: 300
-
Vent door CFM: 61.1 / 57.6 / 50.6
-
Dehumidification (pts/hr): 1.14
-
Electric Heat Voltage: 208 / 230
-
Heater size (kW): 2.5
-
Heating capacity (BTU/h): 7,800 / 6,300
-
Electric Heat Watts: 2,580 / 2,150
-
Electric Heat Amps: 11.3 / 10.3
-
Reverse Cycle Voltage: 208 / 230
-
Reverse Cycle Capacity (BTU/h): 8,100 / 7,900
-
Reverse Cycle Amps: 3.9 / 4.3
-
Reverse Cycle Watts: 720 / 690
-
COP: 3.40
-
Dimensions W x H x D (inches): 42 x 16 x 21
-
Net weight (lbs.): 99.21
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Refrigerant Type: R32
-
Compressor: Standard
-
Energy Star: No
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Cooling BTUs (@208V): 9200
-
Cooling Amps (@208V): 4.6
-
Cooling Watts (@208V): 810
-
Electric Heat Strip Size (kW - @208V): 2.1
-
Electric Heating BTUs (@208V): 6300
-
Electric Heating Amps (@208V): 10.3
-
Electric Heating Watts (@208V): 2150
-
Heat Pump BTUs (@208V): 7900
-
Heat Pump Heating Amps (@208V): 4.3
-
Heat Pump Heating Watts (@208V): 690
-
Cooling BTUs (@230V): 9300
-
Cooling Amps (@230V): 4.2
-
Cooling Watts (@230V): 820
-
Electric Heat Strip Size (kW - @230V): 2.5
-
Electric Heating BTUs (@230V): 7800
-
Electric Heating Amps (@230V): 11.3
-
Electric Heating Watts (@230V): 2580
-
Heat Pump BTUs (@230V): 8100
-
Heat Pump Heating Amps (@230V): 3.9
-
Heat Pump Heating Watts (@230V): 720
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: Yes
-
Fan Speeds: 3
-
Control Type: Electronic/Digital
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: No
-
Certifications: ETL / AHRI
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-15P
-
Circuit Breaker Size (Amps): 15
-
Cord Length: NA
-
Machine Volts: 208/230
-
Machine Amps: 15 amp
-
Cord Included: Yes
-
Plug Type: NEMA 6-15
-
Controls: Electronic
-
Heat: Heat Pump
-
Heater Size (KW): 2.5 KW
-
Fits Standard 42" x 16" Sleeve: Yes
-
Product Length: 42
-
Product Width: 21
-
Product Height: 16
-
Automatic Restart: No
-
Seacoast Protection: No
-
Freeze Protection: No
-
Number of Fan Motors: 2
-
ADA Compliant: No
-
Energy Efficiency Rating (EER): 11.4
-
COP Rating: 3.4
-
Sleeve Included: No
-
Exterior Grille Included: No
-
BTUs Heating (Nominal): 7800
-
Front Cover Included: Yes
-
Maximum Cooling Watts: 820
-
Maximum Cooling Amps: 4.6
-
Maximum Heating Watts: 2580
-
Maximum Heating Amps: 11.3
-
Actual Cooling BTUs @ 208V: 9200
-
Actual Cooling BTUs @ 230V: 9300
-
Actual Heating BTUs Elec @ 208V: 6300
-
Actual Heating BTUs Elec @ 230V: 7800
-
Actual Heating BTUs Heat Pump @ 208V: 7900
-
Actual Heating BTUs Heat Pump @ 230V: 8100
-
CFM (Cool/Wet Coil) - High: 363
-
CFM (Cool/Wet Coil) - Low: 300
-
Amperage: 15 A
