Product Description

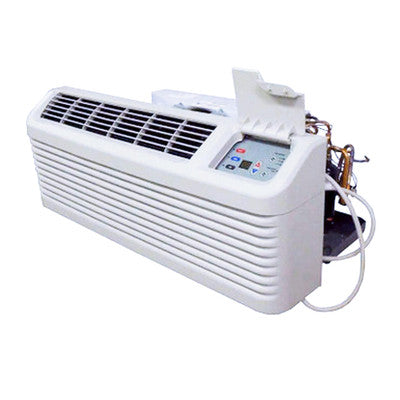

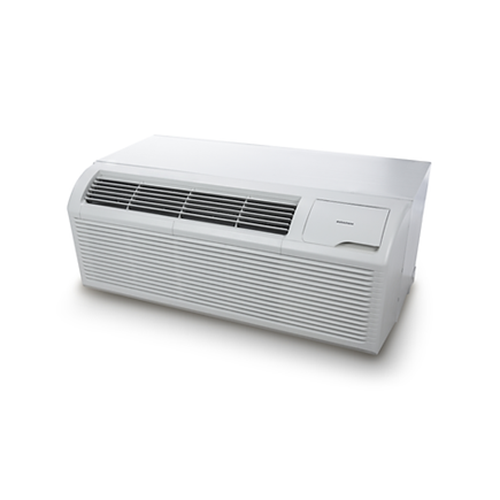

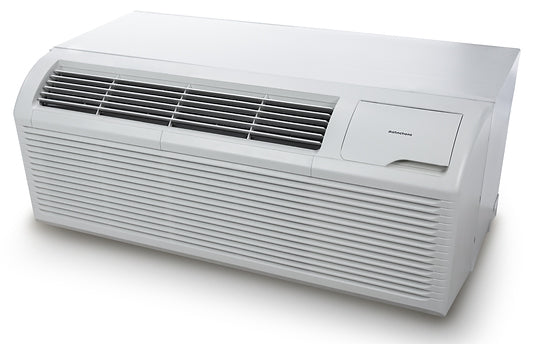

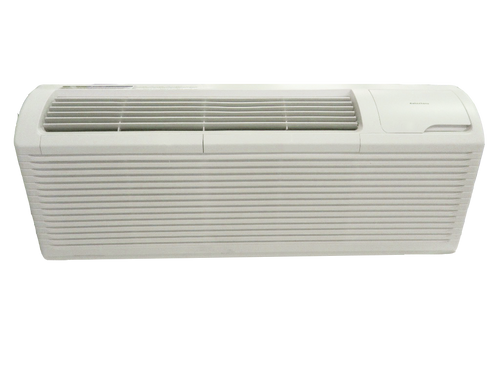

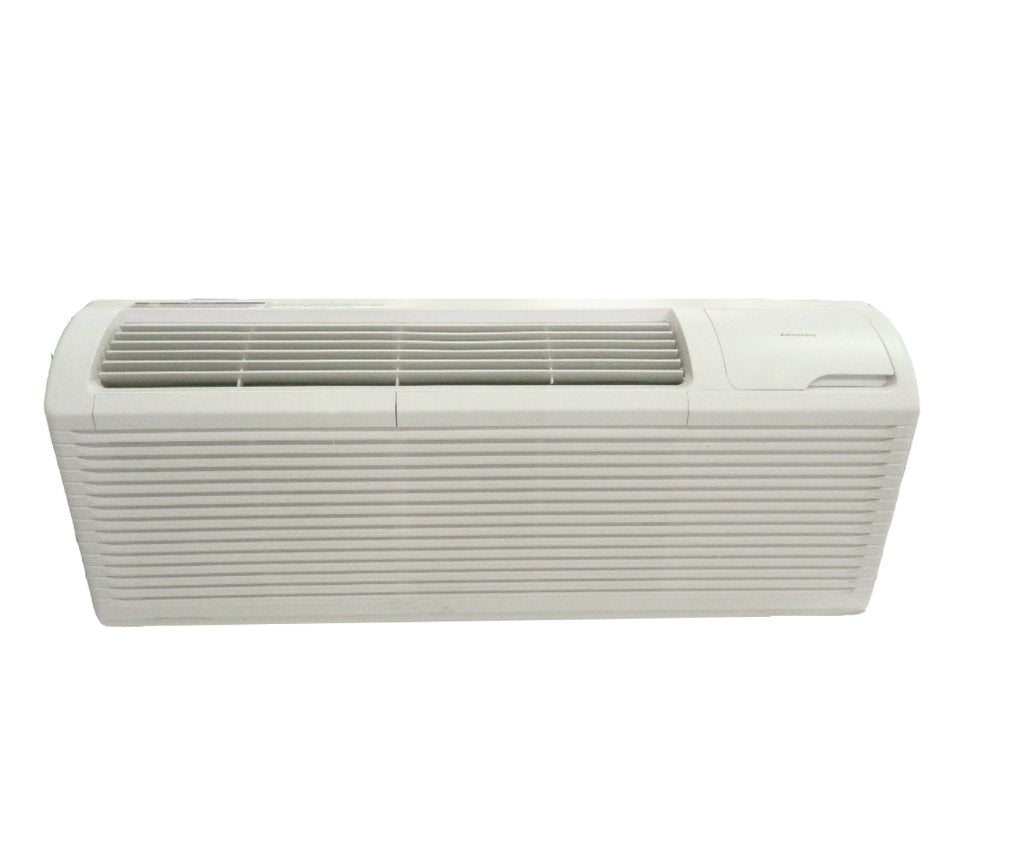

The Amana DCP073J25BA Distinctions PTAC unit offers reliable, high-quality climate control. This unit features R-32 refrigerant with lower Global Warming Potential (GWP). Dual fan motors allow precise independent fan speed and quiet operation. It includes an LCDI power cord and a 3-speed fan for precise comfort control. Constant fan operation or cycling is selectable via the 7-button design.
- R-32 Refrigerant: 68% lower Global Warming Potential (GWP)
- Dual Fan Motors: Allows precise independent fan speed while providing quiet operation.
- LCDI Power Cord Included: No need to match power cord type to unit size.
Product Highlights
This Amana Distinctions PTAC unit provides reliable and efficient climate control with features like R-32 refrigerant, dual fan motors, and a user-friendly design.
Product Information
Standard Information
-
Brand: AMANA
-
Manufacturer Part Number: DCP073J25BA
Technical Specifications
-
Cooling Capacity (BTU/h): 7,300 / 7,200
-
Electric Heat Capacity: 2.5 / 2.1 kW
-
EER: 13.1
-
Voltage: 208/230V
-
Cooling Voltage: 208 / 230
-
Cooling Amps: 3.1 / 3.4
-
Cooling Watts: 560 / 550
-
CFM (cool/wet coil) High: 346
-
CFM (cool/wet coil) Low: 285
-
CFM (dry) High: 346
-
CFM (dry) Low: 285
-
Vent door CFM: 61.1 / 57.6 / 50.6
-
Dehumidification (pints/hr.): 0.63
-
Electric Heat Voltage: 208 / 230
-
Heater size (kW): 2.5
-
Heating capacity (BTU/h): 7,800 / 6,300
-
Heating Watts: 2,580 / 2,150
-
Heating Amps: 11.3 / 10.3
-
Dimensions W x H x D (inches): 42 x 16 x 21
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Refrigerant Type: R32
-
Compressor: Standard
-
Energy Star: No
-
Includes Heat Mode: Yes
-
Heat Type: Electric Resistance Only
-
Cooling BTUs (@208V): 7200
-
EER (@208V): 13.1
-
Cooling Amps (@208V): 3.4
-
Cooling Watts (@208V): 550
-
Electric Heat Strip Size (kW - @208V): 2.1
-
Electric Heating BTUs (@208V): 6300
-
Electric Heating Amps (@208V): 10.3
-
Electric Heating Watts (@208V): 2150
-
Cooling BTUs (@230V): 7300
-
Electric Heat Strip Size (kW - @230V): 2.5
-
Electric Heating BTUs (@230V): 7800
-
Electric Heating Amps (@230V): 11.3
-
Electric Heating Watts (@230V): 2580
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: Yes
-
Fan Speeds: 3
-
Control Type: Electronic/Digital
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: No
-
Certifications: ETL / AHRI
-
Plug Face (NEMA): 6-15P
-
Circuit Breaker Size (Amps): 15
-
Cord Included: Yes
-
Plug Type: NEMA 6-15
-
Controls: Electronic
-
Heat: Electric Heat
-
Fits Standard 42" x 16" Sleeve: Yes
-
Product Length: 42
-
Product Width: 21
-
Product Height: 16
-
Automatic Restart: No
-
Seacoast Protection: No
-
Freeze Protection: No
-
Number of Fan Motors: 2
-
ADA Compliant: No
-
Energy Efficiency Rating (EER): 13.1
-
Sleeve Included: No
-
Exterior Grille Included: No
-
BTUs Heating (Nominal): 7800
-
Front Cover Included: Yes
-
Maximum Cooling Watts: 550
-
Maximum Cooling Amps: 3.3
-
Maximum Heating Watts: 2580
-
Maximum Heating Amps: 11.3
-
Actual Cooling BTUs @ 208V: 7200
-
Actual Cooling BTUs @ 230V: 7300
-
Actual Heating BTUs Elec @ 208V: 6300
-
Actual Heating BTUs Elec @ 230V: 7800
-
4Less California Compliance: Yes
-
Cooling capacity: ~7,200-7,300 BTU/h
-
Electric-heat backup: up to ~7,800 BTU/h
-
Energy Efficiency Ratio (EER): 13.1
-
Refrigerant: R-32
-
Machine Volts: 208/230
