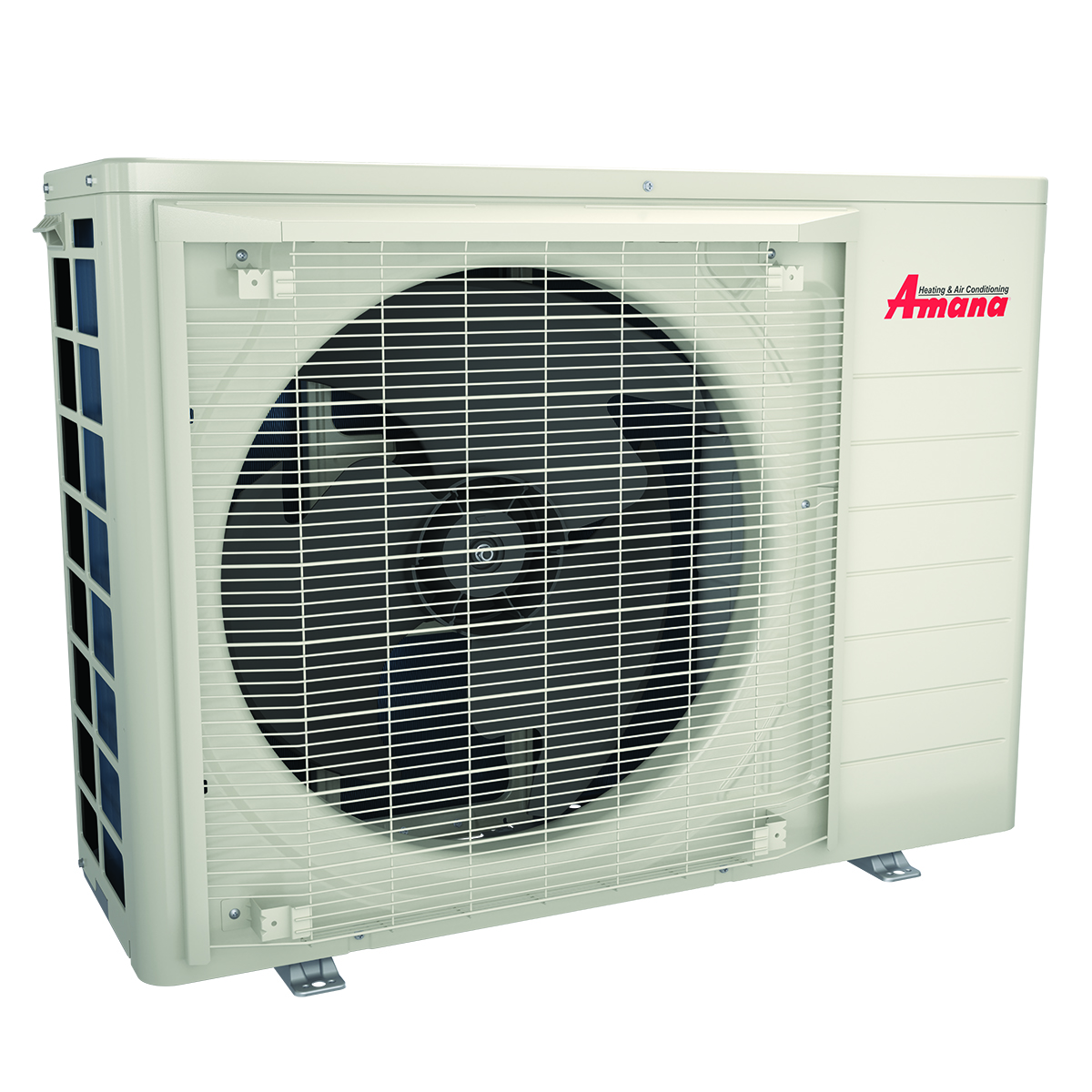

Amana AZV6SA3610 Split Heat Pump 16.2 SEER2 3 Ton

Product Description

The AMANA AZV6SA3610 is a 3-ton split-system heat pump designed for residential and light-commercial HVAC applications. It operates on R32 refrigerant and delivers a 16.2 SEER2 efficiency rating through a variable-speed inverter-driven compressor. The side-discharge configuration suits installations where rooftop or rear-discharge placement is not practical. This unit is non-communicating, meaning it interfaces with standard single-stage or two-stage thermostat controls rather than a proprietary communicating system. Licensed HVAC technicians handle installation and commissioning of this equipment.

The AZV6SA3610 is suited for residential split-system installations requiring higher seasonal efficiency in heating and cooling modes. The inverter-driven compressor modulates capacity to match load, reducing short-cycling and improving comfort across varying outdoor conditions. The side-discharge design is well-suited for ground-level pad installations with restricted airflow clearance on the top of the unit. Because this unit uses R32 refrigerant, installers must verify that their equipment and certifications are current for A2L refrigerant handling per applicable EPA and local code requirements.

Key Features

• 16.2 SEER2 seasonal efficiency rating for compliance with current DOE regional standards
• 3-ton nominal cooling and heating capacity
• Inverter-driven variable-speed compressor for capacity modulation and reduced short-cycling
• R32 refrigerant — lower global warming potential than R410A
• Side-discharge airflow configuration for flexible pad installation
• Non-communicating controls interface — compatible with conventional thermostat wiring

Compatibility

Designed as an OEM split-system outdoor heat pump unit intended for pairing with a compatible AMANA or approved AHU air handler and non-communicating thermostat. No specific compatible indoor unit model numbers were provided in the product data — consult the AMANA AZV6SA3610 installation manual or AHRI certificate for matched indoor coil and air handler combinations.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician with current A2L refrigerant handling authorization, as R32 is classified as a mildly flammable A2L refrigerant. Disconnect and lock out all power to the system before making any electrical or refrigerant connections. Follow local mechanical codes and the manufacturer installation manual for refrigerant line sizing, line set evacuation procedures, and electrical disconnect requirements. Do not operate the unit without verifying that total system refrigerant charge matches the values stated on the equipment nameplate.

Technical Specifications

• Nominal Capacity: 3 Ton
• SEER2 Rating: 16.2 SEER2
• System Type: Split Heat Pump
• Compressor Type: Inverter-Driven Variable Speed
• Refrigerant: R32
• Discharge Configuration: Side Discharge
• Controls Type: Non-Communicating
• UPC: 663051745049

Standard Information

• Brand: AMANA
• Manufacturer Part Number: AZV6SA3610
