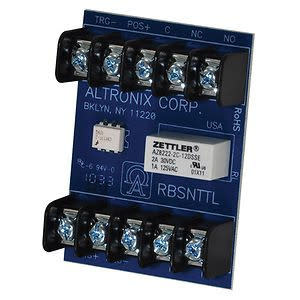

Altronix RBSNTTL Relay Module 12/24VDC DPDT Contacts

Product Description

Altronix RBSNTTL is a relay module designed for reliability and continuous operation. This ultra-sensitive relay operates between twelve to twenty-four volts DC and includes double pole double throw contacts rated for one amp at one hundred twenty volts AC or two amps at twenty-eight volts DC. The module is suitable for various switching applications.

• Ultra-sensitive relay module.
• DPDT contacts rated @ 1A/120VAC or 2A/28VDC.
• 12VDC to 24VDC operation with isolated trigger input.

Product Highlights

This product is ideal for use in access control systems where sensitive triggering is required.

Product Information

Standard Information

• Brand: Altronix
• Manufacturer: Altronix Corporation

Technical Specifications

• Manufacturer Part Number: RBSNTTL
• Voltage: 12V DC to 24V DC
• Current Draw: 18mA
• Contact Type: DPDT
• Dimensions: 1.1 x 1.9 x 2.75 inches
• Weight: 4 oz
• Country of Origin: United States
• Environmental Certification: ROHS
