Altronix PD8CB Power Distribution Module 28V (8-Output) AX-PD8CB

Product Description

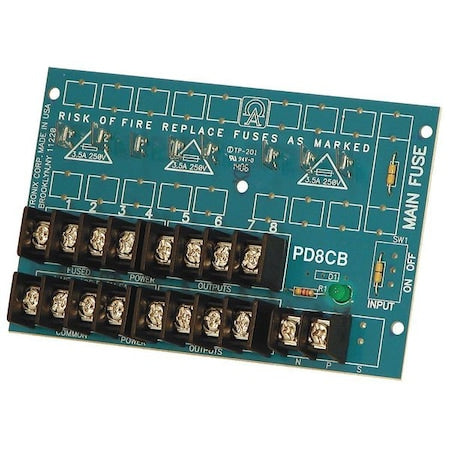

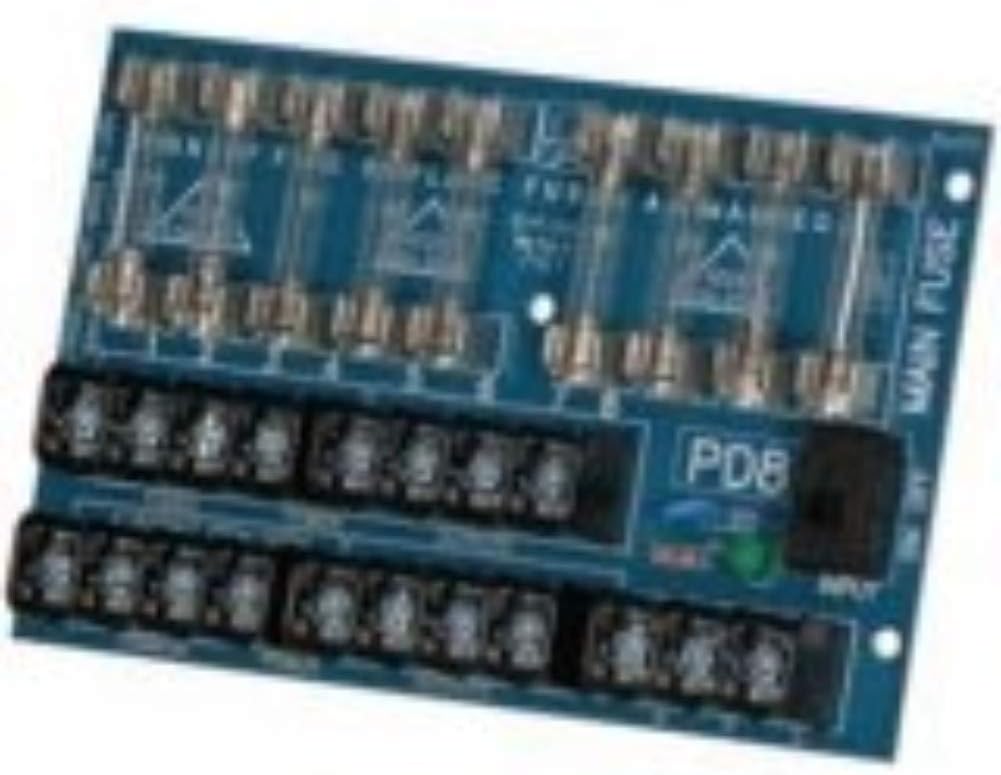

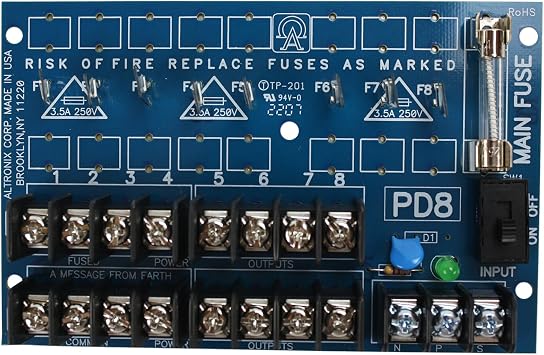

The Altronix PD8CB is an 8-output power distribution module that converts a single 28V AC or 28V DC input into eight PTC-protected, power-limited outputs. The board accepts up to 28V at 14A maximum and includes surge suppression, a power on/off switch and a power output LED indicator for system status. It is board-mountable and suited for low-voltage power distribution in access control and security installations.

• Accepts 28V AC or 28V DC input up to 14A and distributes power to eight PTC-protected outputs.
• Each output is PTC protected (auto-resettable); module includes surge suppression, power LED and power on/off switch.
• Compact board-mount form factor with approximate dimensions 5.25 x 3.25 x 1.00 inches and RoHS compliance.

Product Highlights

Eight PTC-protected outputs for 28V AC/DC distribution; surge suppression and status LED; compact board-mount design.

Product Information

Standard Information

• Brand: ALTRONIX
• Manufacturer Part Number: PD8CB
• Country of Origin: United States

Technical Specifications

• Brand: Altronix
• Manufacturer: Altronix Corporation
• Manufacturer Part Number: PD8CB
• Model: PD8CB
• ADI Part Number: AX-PD8CB
• Alternate Part Number: 423615
• Input Voltage: 28V AC or 28V DC
• Max Input Current: 14 A
• Output Voltage: 28V
• Number of Outputs: 8
• Output Protection: PTC protected (auto-resettable)
• PTC Rating: 2.5 A per output
• Surge Protection: Included
• Indicators: Power output LED indicator
• Power Switch: Power on/off switch
• Mounting Type: Board mount
• Dimensions (L x W x H): 5.25 x 3.25 x 1.00 inches
• Dimensions (mm) (L x W x H): 133.35 x 82.55 x 25.4 mm
• Weight: 0.30 lb (4.8 oz approx)
• Material: Phenolic or fiberglass (board construction)
• Operating Temperature: 0 C to 49 C (32 F to 120 F)
• Storage Temperature: -20 C to 70 C (-4 F to 158 F)
• Relative Humidity: 85% +/- 5%
• Certifications: RoHS
• NDAA Compliant: Yes
• Country of Origin: United States
