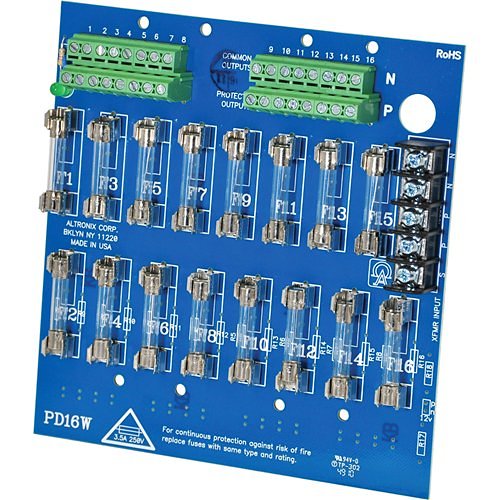

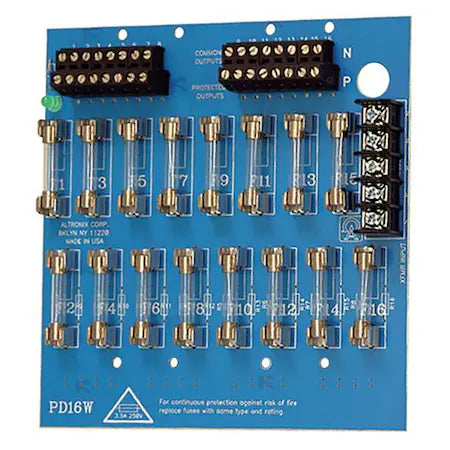

Altronix PD16W Power Distribution Module 16 Output Fuse 28VAC/VDC

Product Description

The Altronix PD16W Power Distribution Module is expertly crafted to streamline the conversion of an AC or DC single input into sixteen individually fused outputs. This module is essential for robust power management in security systems.

• Supports up to 28 volts output with a maximum current of 14A.
• Each of the sixteen outputs is individually fused for enhanced protection.
• UL and cUL listed ensuring compliance with safety standards.

Product Highlights

Altronix PD16W is designed for reliability and safety in power distribution, offering precise control over voltages and current, with thermal protection that guards against overcurrent situations. This module is perfect for applications in security system installations where consistent power distribution is critical.

Technical Specifications

• Power Outputs: 16 fused.
• Input Voltage: 12V DC, 24V AC/DC, 28V AC.
• Output Voltage: Selectable 12 or 24 volts DC.
• Dimensions: Length 5.88 inches, Width 6 inches, Height 1 inch.
• Weight (Approximate): 8 oz.
• Product Material: Phenolic or Fiberglass.
