Altronix EBRIDGE100STR EoC Single-Port Adapter Kit 100Mbps PoE+ Replacement eBridge4SK

Product Description

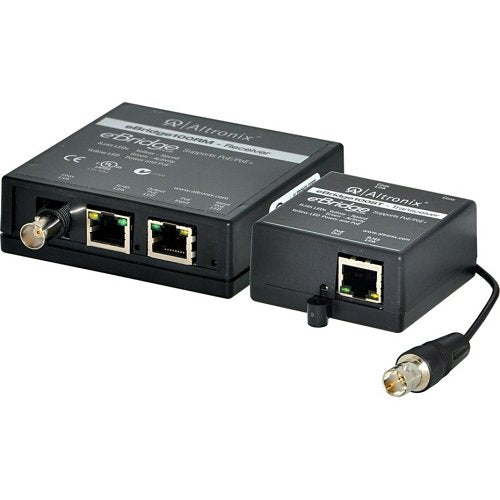

The Altronix EBRIDGE100STR Ethernet over Coax (EoC) Single-Port Adapter Kit is designed to transmit IP video and data over coaxial cable or CAT5e. This kit, which effectively replaces the eBridge4SK, supports PoE (Power over Ethernet) standards IEEE 802.3af and PoE+ IEEE 802.3at, ensuring compatibility with a variety of modern IP cameras and devices. Certified with UL60950-1 and CE, the device guarantees performance up to 100Mbps full duplex at distances up to 500 meters.

• Supports PoE and PoE+ for power and data transmission over a single cable.
• Optimal performance up to 300 meters on coax or 500 meters on CAT5e at 100Mbps.
• Designed for retrofitting digital IP cameras in analog CCTV installations.

Product Highlights

The adapter kit provides a streamlined solution for upgrading existing analog systems to digital, reducing cabling costs and labor by utilizing existing coax. Auto-detection and protection features safeguard non-PoE legacy devices, ensuring seamless integration.

Product Information

Standard Information

• Brand Name: Altronix
• Manufacturer: Altronix Corporation

Technical Specifications

• Product Type: Video Extender Transceiver
• Graphics Modes: Full HD (1920 x 1080)
• Maximum Operating Distance: 1640.42 feet
• Media Type Supported: Coaxial, Twisted Pair
• Connectivity Technology: Wired
• Lifetime Warranty: Yes
