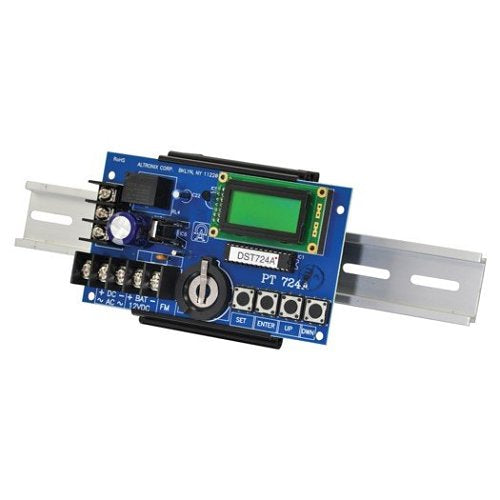

Altronix DPT724A Annual Event Timer 12/24V AC/DC for DIN Rail Mount - AX-DPT724A

Product Description

The Altronix DPT724A is a highly versatile annual event timer, engineered for a wide array of applications including home and building automation, security, and access control. Equipped with an alphanumeric LCD display and a battery charger, this timer ensures reliable functioning throughout the year.

• Features independent form C relay contact for varied operations.
• EE Prom memory secures programming against power loss.
• Supports up to 350 events per week with special holiday scheduling.

Product Highlights

Designed for precision and reliability, the Altronix DPT724A incorporates a crystal controlled clock and can handle both momentary and latching events. Its compact form factor is ideal for DIN rail mounting, making it suitable for integration into existing setups.

Product Information

Standard Information

• Material: Fiberglass, Phenolic
• Display Type: Alphanumeric LCD

Technical Specifications

• Input Voltage: 12/24V AC/DC
• Programmable Events: 50 daily/weekly, 10 holiday dates
• Alarm Type: Visual
• Form Factor: DIN Rail
• Width: 5.3 inches
• Height: 1 inch
