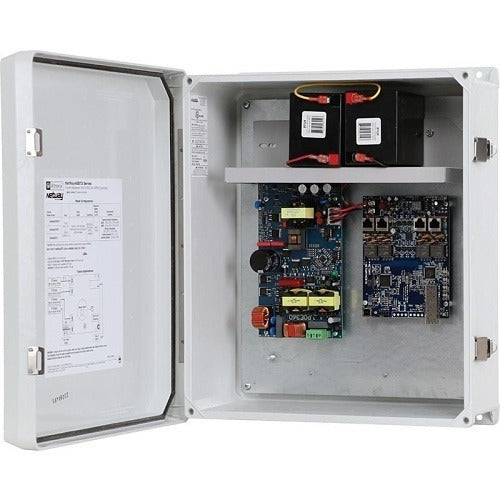

Altronix Corp NETWAY4EBTWPX3 4-port Poe Switch 360W Nema 4X

Product Description

The ALTRONIX CORP NETWAY4EBTWPX3 is a 4-port managed Power over Ethernet switch with an SFP uplink port, a 360-watt power supply, and a NEMA 4X-rated enclosure. It delivers network switching and PoE power distribution in a single hardened unit designed for demanding installation environments. The integrated power supply eliminates the need for a separate external power source at the edge, streamlining panel layout. This unit is installed by licensed security and low-voltage technicians working on IP-based access control, video surveillance, and building automation systems.

The NETWAY4EBTWPX3 is suited for commercial and industrial applications where network-connected devices such as IP cameras, access control readers, and intercoms require both data connectivity and PoE power at a remote or edge location. The NEMA 4X enclosure provides protection against dust, windblown debris, and water ingress, making it appropriate for outdoor cabinets, parking structures, building perimeters, and other environments where a standard indoor-rated enclosure would not be appropriate. The SFP slot supports fiber uplink options for extended distance runs back to the head-end switch.

Key Features

• 4 PoE-capable ports for powering IP cameras, readers, and other IEEE 802.3af/at-compatible devices
• Integrated SFP uplink port supports fiber or copper gigabit connectivity to head-end equipment
• 360-watt onboard power supply provides substantial PoE power budget across all four ports
• NEMA 4X-rated enclosure resists dust, water ingress, and corrosion for outdoor and harsh-environment installs
• All-in-one design combines switching, PoE power distribution, and enclosure in a single unit
• Designed for access control and IP surveillance edge deployments in commercial and industrial facilities

Compatibility

Designed for use in IP-based access control, video surveillance, and building automation systems requiring edge-mounted PoE switching with an integrated hardened enclosure.

Installation Notes

Installation should be performed by a licensed low-voltage or electrical technician familiar with NEC requirements for Class 2 and PoE wiring. Disconnect and de-energize all power sources before making any wiring connections inside the enclosure. Verify that the total PoE load across all connected devices does not exceed the rated power budget of the supply. Seal all conduit entries and maintain the NEMA 4X integrity of the enclosure to preserve its environmental rating after installation.
