Altronix Corp MAXFIT11E Access Power Supply 12 24VDC 8A

Product Description

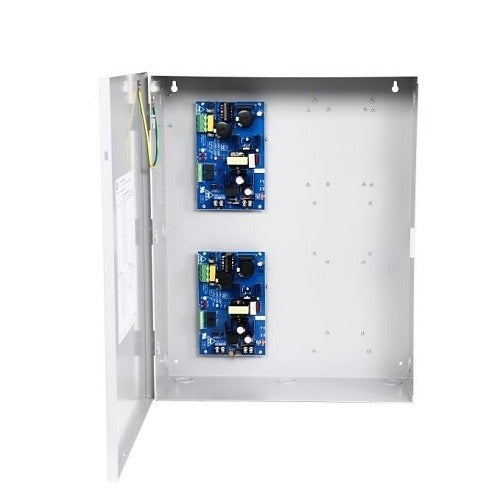

The ALTRONIX CORP MAXFIT11E is a dual-voltage access control power supply designed for installation inside a Maxfit enclosure. It delivers 12 or 24 VDC at up to 8 amps, providing regulated DC power to access control panels, locking hardware, and associated peripheral devices. This unit carries a UL listing, making it suitable for installations where listed equipment is required by code or by the authority having jurisdiction. Licensed low-voltage and security system technicians are the primary installers of this type of power supply.

The MAXFIT11E is used in commercial and light-industrial access control systems where a compact, enclosure-mounted power supply is needed. It is sized for applications requiring a reliable 12 VDC or 24 VDC source at 8 amps to support door controllers, electric strikes, magnetic locks, and request-to-exit devices. The Maxfit enclosure form factor allows organized, code-compliant panel installation in IT closets, utility rooms, and security head-end locations.

Key Features

• Dual-voltage output: 12 VDC or 24 VDC selectable
• 8-amp output capacity to support multiple access control loads
• UL listed for use in access control power supply applications
• Designed to mount inside Altronix Maxfit enclosure for a self-contained installation
• Single unit sold per each (EA)

Compatibility

Designed as an OEM-style replacement or direct-fit power supply for access control systems requiring a UL-listed 12 VDC or 24 VDC source, specifically configured for use with the Altronix Maxfit enclosure series.

Installation Notes

Installation should be performed by a licensed low-voltage or security system technician in accordance with applicable local codes and NFPA 70 (NEC) requirements. Disconnect all power sources to the enclosure before wiring or replacing this unit. Verify output voltage selection matches the connected load requirements before energizing. Do not exceed the rated 8-amp output current across connected devices.
