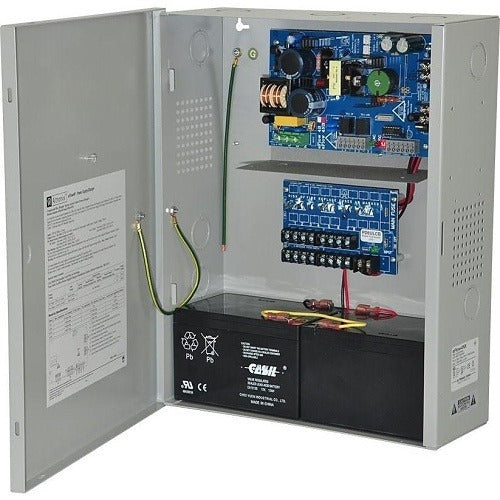

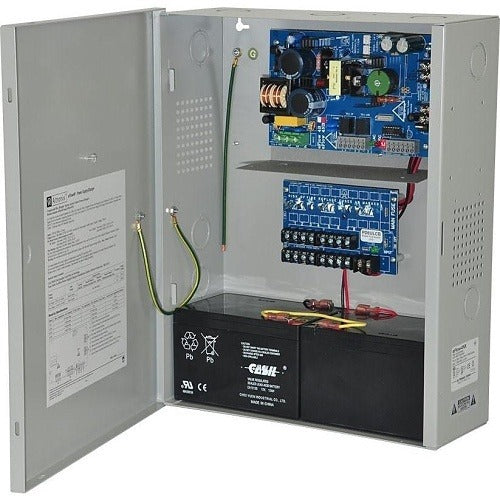

Altronix Corp EFLOW4NX8D Access Power Supply 12/24VDC 4A

Product Description

The ALTRONIX CORP EFLOW4NX8D is an access control power supply designed to provide regulated 12 or 24 VDC output at up to 4 amps to support access control and security system field devices. It features 8 PTC-protected power outputs, allowing individual circuit protection for connected devices such as locks, readers, and door controllers. The FAI XL enclosure designation indicates this unit ships as part of the Altronix EFLOW series, designed for organized, rackmount-style power distribution in structured access control installations. Licensed security integrators and low-voltage electricians typically install this unit.

The EFLOW4NX8D is suited for commercial and light industrial access control installations where multiple independently protected power runs are needed from a single supply. It is commonly installed in server rooms, electrical closets, and security equipment enclosures where organized power distribution to door hardware, credential readers, and similar field devices is required. The 8 PTC outputs allow technicians to maintain circuit isolation without the need for additional inline fusing on individual device runs.

Key Features

• Selectable 12 VDC or 24 VDC output voltage to match field device requirements
• 4 amp total output capacity for powering multiple access control peripherals
• 8 individually PTC-protected output circuits for overcurrent protection per run
• FAI XL enclosure format suited for rackmount or structured security panel installations
• Part of the EFLOW series, designed for organized multi-output access power distribution

Compatibility

Designed as an OEM-style replacement or direct installation unit for commercial access control power distribution applications requiring multi-output 12 or 24 VDC power with PTC-protected circuits.

Installation Notes

Installation should be performed by a licensed low-voltage electrician or qualified security systems integrator in accordance with NEC Article 725 for Class 2 and Class 3 power-limited circuits. De-energize the enclosure and verify no voltage is present before making any wiring connections. Ensure total connected load does not exceed the 4 amp output rating of the supply. Follow local AHJ requirements for enclosure mounting, conduit fill, and labeling of individual output circuits.
