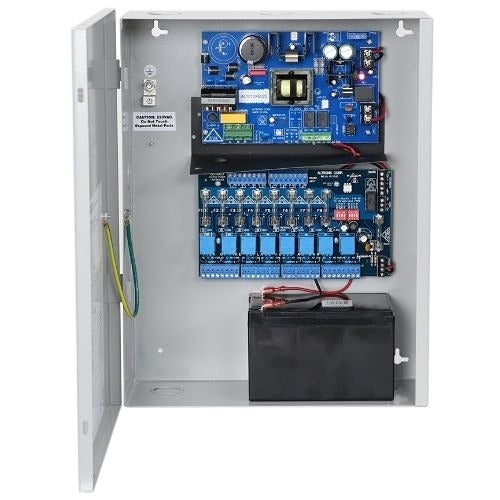

Altronix Corp AL1012ACM220 Access Control Power Supply 10A 12VDC

Product Description

The ALTRONIX CORP AL1012ACM220 is a 10-amp, 12-volt DC access control power supply with an integrated 8-output access control module, rated for 220-volt AC input. It provides regulated DC power and distributed output switching in a single enclosure, making it a consolidated solution for access control panel installations. Licensed security and low-voltage electricians install this unit to power electric locks, door strikes, magnetic locks, and access control readers across multiple zones. The 220V input rating suits installations in regions or facilities that operate on 220V AC mains.

This power supply is designed for commercial and light industrial access control applications where multiple independently switched outputs are required from a single power source. The integrated ACM8 module delivers 8 discrete outputs, allowing a single unit to serve an 8-door or multi-zone access control system without requiring a separate power distribution module. It is commonly installed in security panels, equipment rooms, and telecommunications closets by low-voltage or licensed electrical contractors.

Key Features

• 10-amp continuous output current at 12 volts DC for driving multiple access control devices simultaneously
• Integrated 8-output access control module (ACM8) eliminates the need for a separate distribution board
• 220V AC input rating for facilities operating on 220V mains
• Single-enclosure design consolidates power supply and output switching for cleaner installations
• Designed for commercial multi-zone access control deployments

Compatibility

Designed as an OEM-style replacement or direct-install unit for commercial access control power supply applications requiring a 10A, 12VDC regulated supply with an 8-output distribution module and 220V AC input.

Installation Notes

Installation should be performed by a licensed low-voltage or electrical contractor familiar with access control systems and applicable local codes. Disconnect and lock out all AC mains power before wiring the unit to the panel or load devices. Ensure the input circuit is properly fused and rated for the 220V AC supply voltage before energizing. Follow the manufacturer data sheet and local NEC or equivalent electrical code requirements for wire gauge, conduit, and overcurrent protection.
