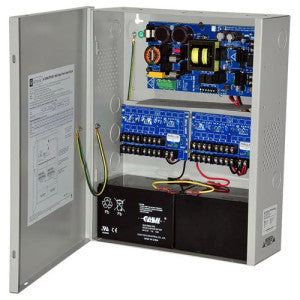

Altronix AL1024ULXPD16CB Power Supply Charger, 24VDC at 10A, 16 PTC Outputs

Product Description

The Altronix AL1024ULXPD16CB is a multi-output power supply and charger designed for access control systems. It converts a one hundred fifteen VAC, sixty hertz input into sixteen Class 2 rated twenty-four VDC outputs. This power supply provides ten amps of continuous supply current suitable for access control applications and eight amps for fire alarm systems.

• Sixteen Class 2 rated outputs
• Built-in battery backup system
• Thermal and short circuit protection

Product Highlights

This product supports a range of applications with its robust power management features. It is essential for ensuring system reliability during power failures.

Product Information

Standard Information

• Brand: Altronix
• Manufacturer Part Number: AL1024ULXPD16CB

Technical Specifications

• Input Voltage: 115VAC
• Output Voltage: 24VDC
• Output Current: 10A
• Dimensions: 15.5 inches H x 12.25 inches W x 4.5 inches D
• Operating Temperature: 0 to 49 degrees C
• Weight: 11.3 lbs
• Environmental Certification: ROHS
