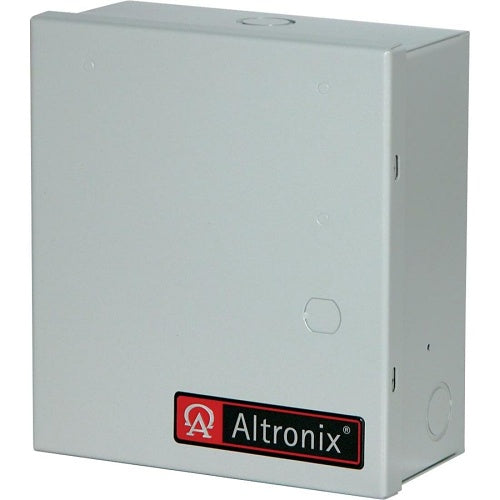

Altronix ACM4CBE Access Power Controller, PTC Class Relay Outputs, FAI, BC100 Enclosure

Product Description

The Altronix ACM4CBE Access Power Controller is designed to convert one twelve to twenty-four volt AC or DC input into four independently controlled PTC protected relay outputs. Outputs are triggered by various access control methods such as card readers, keypads, or PIR sensors. This unit can supply power to devices such as maglocks and electric strikes, accommodating both fail-safe and fail-secure modes.

• Four PTC Class 2 relay outputs
• Fire alarm disconnect feature
• Compatible with various access control devices

Product Highlights

The ACM4CBE unit routes power from one or two separate power sources to both board operation and locking devices, enabling smooth operation.

Product Information

Standard Information

• Brand: Altronix
• Model: ACM4CBE

Technical Specifications

• Input Voltage: 12 to 24 volts AC or DC
• Output Count: 4
• Weight: 6.70 lb
• Dimensions: 8.5 inches (Height) x 7.5 inches (Width) x 3.5 inches (Depth)
• Environmental Certification: ROHS
• Warranty: Lifetime
• Country of Origin: United States
