Product Description

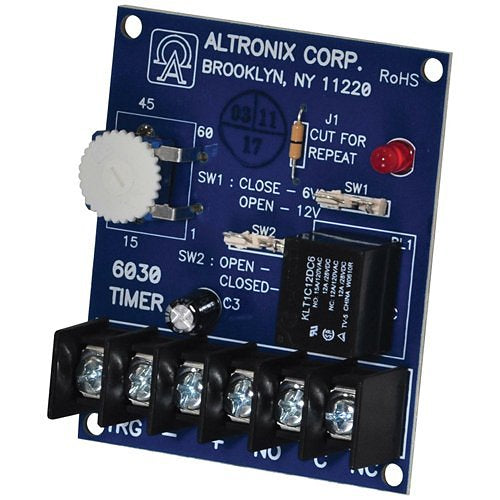

The Altronix 6030 Timer Board is an essential tool providing reliable timer functions for various applications, including system resets and timed device operations.
- Adjustable from one second to sixty minutes for versatile operation.
- Supports both 6VDC and 12VDC input voltages.
- Compact design with SPDT relay output rated at 8A/115VAC.
Product Highlights
Designed with robust SPDT contacts capable of handling high voltage operations. Its multi-purpose functionality makes it suitable for a wide range of applications, from alarm systems to delay timers.
Product Information
Standard Information
-
Material: Durable Phenolic or Fiberglass board.
-
Dimensions: Length 3 inches, Width 2.5 inches, Height 0.8 inches.
Technical Specifications
-
Input Voltage: 6/12 VDC
-
Timing Range: 1 sec to 60 min
-
Relay Output: 8A/115 VAC
-
LED Display: for timer status indication
-
Environmental Certification: RoHS
-
Warranty: Lifetime
-
Weight: Approx. 6.40 oz
