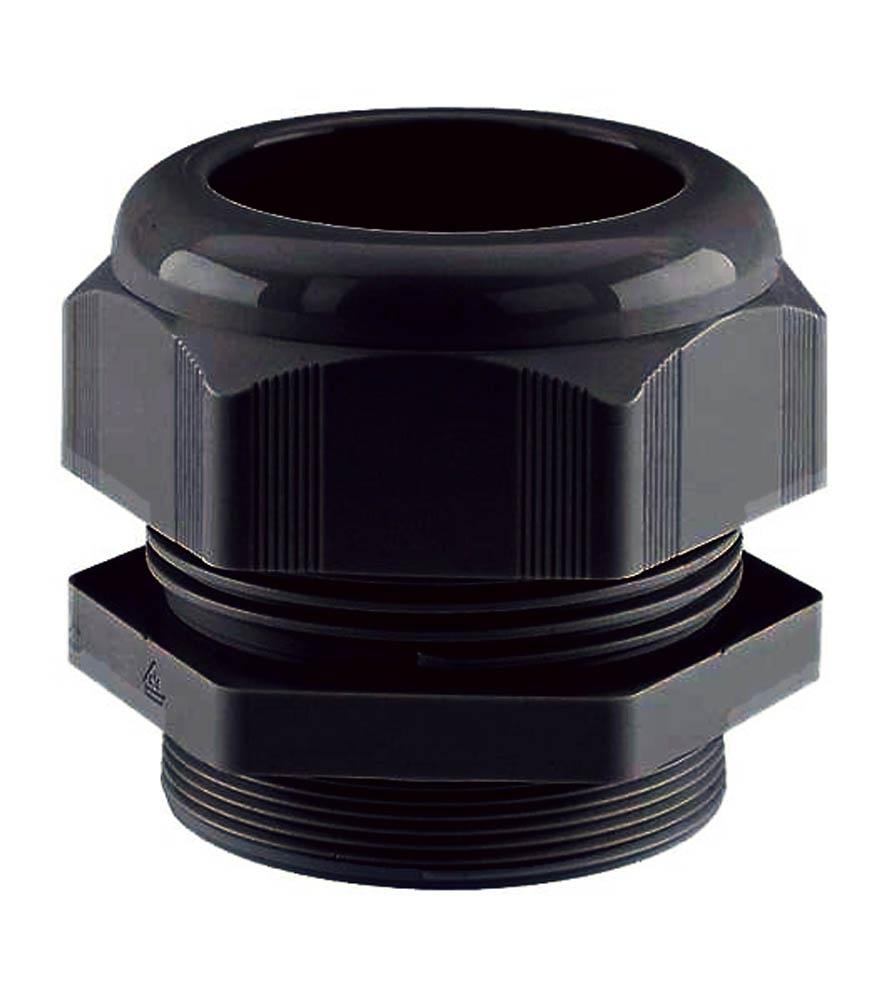

Altech 5308 922 cable gland 9-18.01mm 3/4 inches NPT

Product Description

The ALTECH 5308 922 Cable Gland is constructed from Polyamide (PA), Nylon, and features a 3/4" NPT thread size. It is engineered to accommodate outside cable diameters ranging from 0.354" (9.00mm) to 0.709" (18.01mm). This cable gland provides IP68 dust-tight and waterproof ingress protection, ensuring reliable performance in demanding environments. It operates effectively within a temperature range of -40°C to 100°C, making it suitable for various industrial and electrical applications requiring secure cable management and strain relief.

• IP68 - Dust Tight, Waterproof
• Made of Polyamide (PA), Nylon
• Suitable for cable diameters from 0.354" (9.00mm) to 0.709" (18.01mm)

Product Highlights

Provides secure cable management with IP68 protection and wide temperature tolerance.

Product Information

Standard Information

• Brand: ALTECH
• Manufacturer Part Number: 5308 922
• Country of Origin: France

Technical Specifications

• Category: Cables, Wires - Management, Cable and Cord Grips
• Thread Length: 0.591" (15.00mm)
• Manufacturer: Altech Corporation
• Panel Hole Size: 1.050" (26.7mm)
• Material: Polyamide (PA), Nylon
• Color: Black
• Type: Cable Gland
• Ingress Protection: IP68 - Dust Tight, Waterproof
• Outside Cable Diameter (Min): 0.354" (9.00mm)
• Operating Temperature: -40°C ~ 100°C
• Outside Cable Diameter (Max): 0.709" (18.01mm)
• Base Product Number: 5308
• Thread Size: 3/4" NPT
• Series: 5308 Series
• Body Material: Polyamide 6
• Seal Material: Neoprene
• Application: For machines and devices
• Overall Length: 54 mm
• Inner Diameter: 18.5 mm
• Thread Type: NPT
