Aloris S-3 Lathe Spindle Accessory Kit 1.75-2.4375 in

Product Description

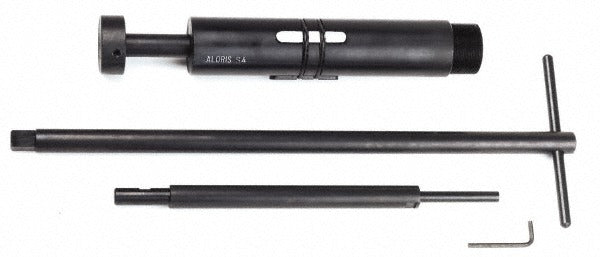

The ALORIS S-3 is a lathe spindle accessory kit designed to expand workholding capability on engine lathes and turret lathes. It fits spindle bores ranging from 1.75 inches minimum to 2.4375 inches maximum inside diameter. The kit includes a collet bar, adjustable locking jaw body, threaded and tapered pin with square end shank and spring-loaded locking ball, short and long extension bars, a removable cup for machining tubing, and a socket T-handle wrench. Machinists and tool and die makers will find this kit useful for holding bar stock, tubing, and collets during turning operations.

The S-3 is suited for use in machine shop environments where spindle workholding flexibility is needed across a range of bore sizes. The included extension bars and removable cup allow the operator to configure the setup for either short or long workpieces, as well as for machining hollow tubing sections. This makes the kit practical for both production turning and toolroom applications.

Key Features

• Fits spindle inside diameters from 1.75 inches to 2.4375 inches
• Includes bar for collets to expand workholding options
• Body with adjustable locking jaws for secure clamping
• Threaded and tapered pin with square end shank and spring-loaded locking ball
• Short and long extension bars for flexible reach configurations
• Removable cup fits short and long extension bars for machining tubing
• Socket T-handle wrench included for assembly and adjustment

Compatibility

Designed as an OEM-style lathe spindle accessory for lathes with spindle bore inside diameters between 1.75 inches and 2.4375 inches.

Installation Notes

Installation should be performed by a qualified machinist familiar with lathe workholding systems. Power down and lock out the lathe spindle drive before installing or removing any spindle accessory components. Verify that all locking jaws and the spring-loaded locking ball are fully engaged before rotating the spindle. Confirm bore diameter compatibility with the host machine before fitting the accessory.
