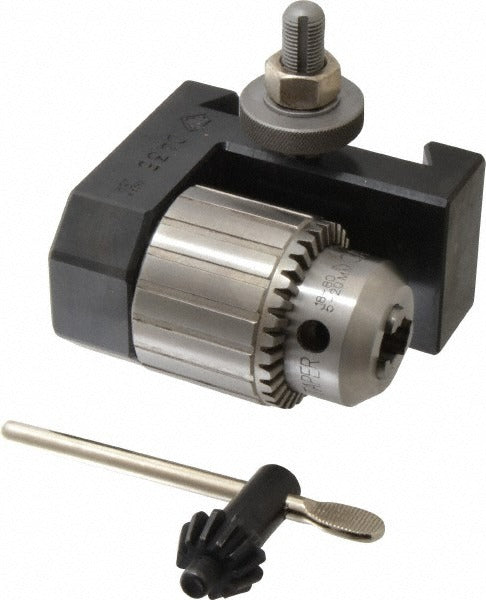

Aloris DA35 Dovetail Drill Chuck Holder Series Da

Product Description

The ALORIS DA35 is a dovetail-style drill chuck holder designed for use with Series DA quick-change lathe tool posts. It accepts drill chucks and similar tooling for drilling, reaming, and boring operations performed directly on the lathe. The DA35 has an overall height of 2.5 inches and a centerline height of 2.8125 inches, with a maximum cutting tool size of 0.75 inches. The dovetail interface locks the holder securely into compatible quick-change tool post blocks, allowing machinists and toolroom operators to swap tooling without re-indicating center height on every change.

The DA35 is suited for engine lathes, toolroom lathes, and similar turning machines with a lathe swing between 17 and 48 inches. It is intended for production shops, toolrooms, and job shops where drilling and reaming on center at the lathe is a routine operation. The quick-change dovetail mount reduces setup time compared to lantern-style or screw-down tool posts. Through-coolant capability is not included on this holder.

Key Features

• Dovetail quick-change interface compatible with Series DA tool post systems
• Accepts drill chucks for on-lathe drilling, reaming, and boring
• Maximum cutting tool size of 0.75 inches
• Overall height of 2.5 inches with a centerline height of 2.8125 inches
• Fits lathes with a swing range of 17 to 48 inches
• No through-coolant port - simplifies the holder profile and reduces cost

Compatibility

Designed for use with ALORIS Series DA quick-change tool post systems on lathes with a swing of 17 to 48 inches.

Installation Notes

Installation is performed by machinists or tool and die makers familiar with quick-change lathe tooling. Before mounting or removing any holder, disengage the lathe spindle and confirm all rotating components have come to a full stop. Seat the dovetail fully into the tool post block and engage the locking cam or screw to the manufacturer-specified feel before beginning a cut. Verify centerline height alignment with a dead center or dial indicator before taking the first pass.
