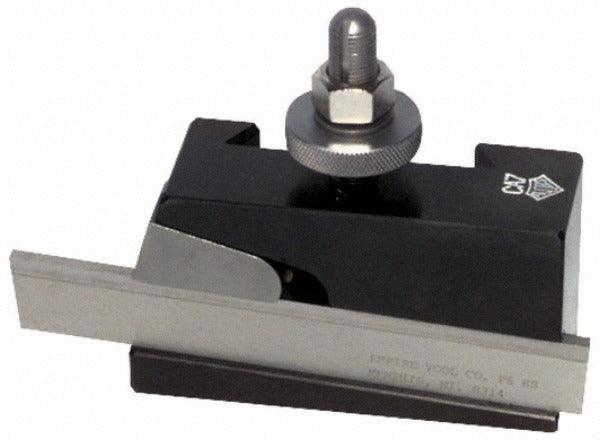

Aloris DA-7 Universal Parting Blade Holder

Product Description

The ALORIS DA-7 is a universal parting blade holder designed for use with quick-change tool post systems on engine lathes. Part of the DA Series, it accommodates lathes with a swing range of 17 to 48 inches, making it a versatile choice for both light-duty and mid-size turning equipment. The holder accepts parting blades up to 1.125 inches in height and features an overall height of 2.75 inches with a centerline height of 1.75 inches. At 5.38 pounds, it is built for rigidity during cutoff operations. Licensed machinists and toolroom operators install this holder to enable efficient parting and grooving on compatible lathe setups.

The DA-7 is suited for production and job shop environments where reliable parting blade support is required across a wide range of lathe sizes. Its universal design allows it to seat securely in DA Series quick-change tool posts without shimming or modification. The broad swing compatibility - 17 to 48 inches - makes it a practical stocking item for shops running multiple lathes of different sizes. No through-coolant feature is included on this holder.

Key Features

• Accepts parting blades up to 1.125 inches in blade height
• Compatible with lathes ranging from 17 to 48 inches swing
• Overall height of 2.75 inches with a 1.75 inch centerline height
• DA Series quick-change design for tool-free blade positioning
• Solid construction at 5.38 pounds for rigidity during cutoff
• No through-coolant port - standard dry or flood coolant application

Compatibility

Designed for use with ALORIS DA Series quick-change tool post systems on engine lathes with a swing of 17 to 48 inches.

Installation Notes

Installation should be performed by a qualified machinist with the lathe fully powered down and the spindle locked before mounting or adjusting any tool post holder. Confirm the parting blade is clamped securely and blade height is set to centerline before beginning a cutoff pass. Refer to the tool post manufacturer guidelines for proper dovetail engagement and locking torque procedures. Follow applicable shop safety standards for cutoff operations, as parting is one of the higher-risk turning operations.
