Aloris CXA-20 Turning Holder Carbide Triangular Inserts Cxa Series

Product Description

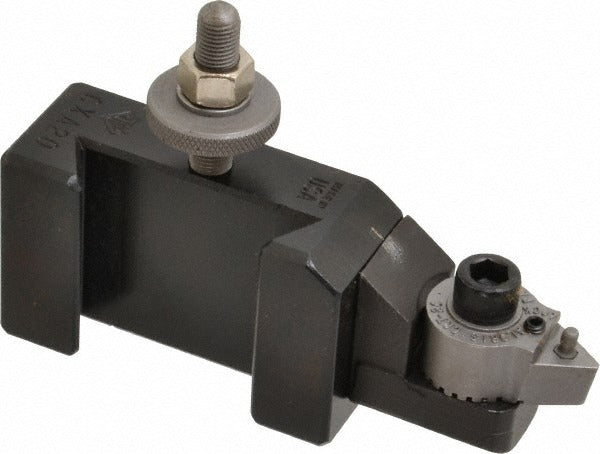

The ALORIS CXA-20 is a turning tool post holder designed for use with carbide triangular inserts in the CXA series quick-change tool post system. It accepts TNM332 inserts with a 3/8-inch inscribed circle and a 3/16-inch insert thickness. The holder stands 2 inches in overall height, with a centerline height of 1-3/8 inches, putting the cutting edge precisely on center for consistent turning operations. Weighing 2.5 pounds, it is built for stability on the tool post. This holder does not include through-coolant capability. It is installed by machinists and toolroom professionals working on engine lathes in production and job-shop environments.

The CXA-20 is suited for engine lathes with a swing range of 13 to 18 inches. It is compatible with the CXA series quick-change tool post system, which is a widely used standard on mid-size manual and CNC-assisted lathes in general machining, maintenance, and toolroom applications. The holder is designed for turning operations using carbide triangular inserts, making it appropriate for roughing and finishing passes on a range of metals.

Key Features

• Accepts TNM332 carbide triangular inserts with 3/8-inch inscribed circle
• CXA series quick-change compatibility for fast, repeatable tool changes
• 2-inch overall height with 1-3/8-inch centerline height for on-center alignment
• Fits lathes with 13 to 18-inch swing range
• No through-coolant port - suitable for dry and flood-coolant setups where coolant is applied externally
• Weighs 2.5 pounds for solid tool post engagement

Compatibility

Designed for use with CXA series quick-change tool post systems on engine lathes with a swing of 13 to 18 inches. Compatible with TNM332 carbide triangular inserts with a 3/8-inch inscribed circle and 3/16-inch thickness.

Installation Notes

Installation is performed by machinists or toolroom technicians. Ensure the lathe is fully powered down and the spindle is locked before mounting or swapping tool post holders. Seat the holder firmly in the quick-change tool post and tighten the locking lever to the post manufacturer's recommended engagement before taking a cut. Verify cutting-edge height against the spindle centerline before beginning any operation.
