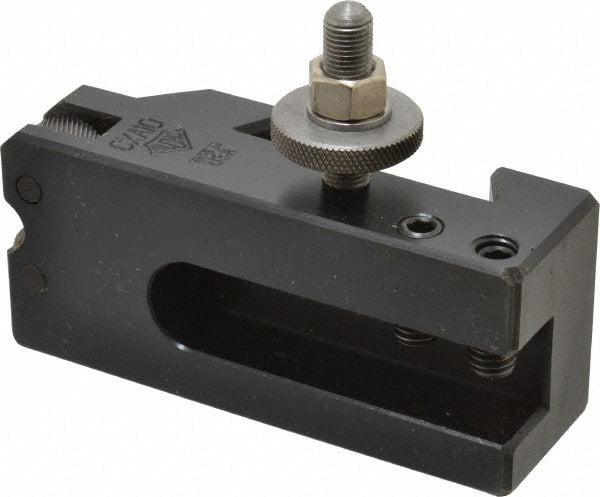

Aloris CXA-10 Knurling Turning Facing Lathe Tool Post Holder

Product Description

The ALORIS CXA-10 is a knurling, turning, and facing tool post holder designed for use on lathes with a swing range of 13 to 18 inches. Built for the CXA series quick-change tool post system, it accepts tool bits ranging from 1/2 to 3/4 inches and supports cutting tools up to 3-1/8 inches. The overall height is 2 inches, with a centerline height of 1-3/16 inches. This holder is installed and used by machinists and toolroom technicians in production and job-shop environments where consistent, repeatable tool positioning is required.

The CXA-10 is suited for mid-size engine lathes and toolroom lathes with swings from 13 to 18 inches. Typical applications include knurling operations, general turning, and facing cuts where a rigid, repeatable tool holder setup is needed. It integrates with the CXA series quick-change tool post system, allowing fast tool changes without re-indicating centerline height between setups.

Key Features

• Compatible with lathes in the 13 to 18 inch swing range
• Accepts tool bits from 1/2 to 3/4 inches
• Maximum cutting tool size of 3-1/8 inches
• Overall height of 2 inches with a centerline height of 1-3/16 inches
• Designed for knurling, turning, and facing operations
• Part of the CXA series quick-change tool post system for fast, repeatable setups

Compatibility

Designed for use with CXA series quick-change tool posts on lathes with a swing of 13 to 18 inches.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Ensure the lathe is powered down and the spindle is locked before mounting or adjusting any tool post holder. Secure all locking mechanisms on the quick-change tool post before taking a cut. Verify tool centerline height alignment before commencing operations.
