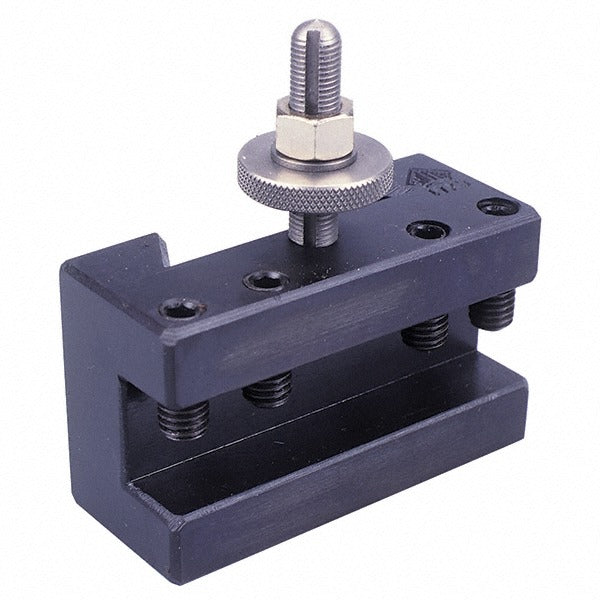

Aloris CXA-1 Turning Facing Lathe Tool Post Holder

Product Description

The ALORIS CXA-1 is a Series CXA turning and facing tool post holder designed for engine lathes with a swing range of 13 to 18 inches. It accepts tool bits from 1/4 inch up to 3/4 inch and accommodates a maximum cutting tool size of 3/4 inch. The holder stands 2.125 inches overall height with a 3.5 inch overall length, and its centerline height measures 1.4375 inches. Licensed machinists and lathe operators install this holder as part of a quick-change tool post system, allowing fast, repeatable tool changes without resetting centerline height between operations.

The CXA-1 is suited for use on mid-size manual lathes in job shops, tool rooms, and maintenance machine shops. It is compatible with other CXA-series quick-change tool post systems. Typical applications include general turning and facing operations where consistent tool positioning and rigid clamping are required. No through-coolant provision is included in this holder design.

Key Features

• Fits lathes with 13 to 18 inch swing - proper size class for mid-range engine lathes
• Accepts tool bit range of 1/4 inch to 3/4 inch for broad cutting tool compatibility
• Maximum cutting tool size of 3/4 inch
• Centerline height of 1.4375 inches for consistent tool height registration
• Series CXA quick-change interface for repeatable, tool-room-accurate positioning
• No through-coolant path - standard dry or flood-coolant setup applies

Compatibility

Designed for use with CXA-series quick-change tool post systems on engine lathes with a swing of 13 to 18 inches.

Installation Notes

Installation is performed by machinists familiar with engine lathe setup and quick-change tool post systems. Power down and disengage the lathe before mounting or adjusting any tool post holder. Verify centerline height alignment to the lathe spindle axis using a reference tool or test indicator before cutting. Follow the tool post manufacturer torque and clamping procedures for the CXA dovetail interface.
