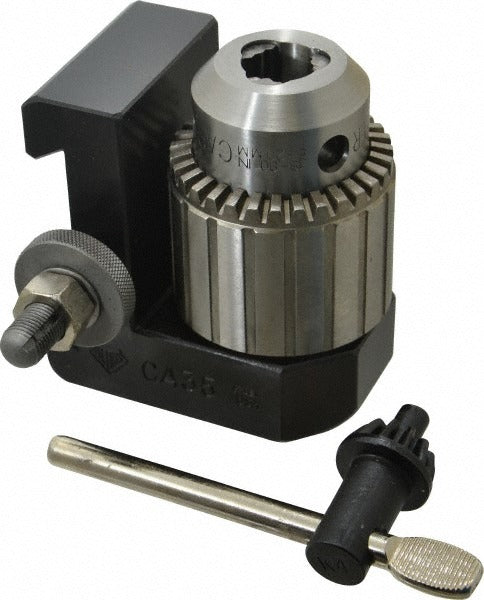

Aloris CA35 Dovetail Drill Chuck Holder Series Ca

Product Description

The ALORIS CA35 is a dovetail drill chuck holder designed for use with quick-change lathe tool post systems in the CA series. It accepts drill chucks for boring, drilling, and reaming operations directly on the lathe, eliminating the need to transfer workpieces to a drill press. The CA35 is sized for lathes with a swing range of 14 to 20 inches and provides an overall height of 2.5 inches with a centerline height of 2.5625 inches. Maximum cutting tool size is 0.75 inches. Licensed machinists and toolroom technicians are the primary installers of this holder in production and job shop environments.

The CA35 fits lathes in the 14-to-20-inch swing class, making it appropriate for mid-size engine lathes commonly found in production shops, maintenance facilities, and vocational training environments. It mounts to any compatible CA-series quick-change tool post, allowing fast changeover between turning, boring, and drilling operations without resetting center height. Through-coolant is not supported on this holder.

Key Features

• Dovetail interface compatible with CA-series quick-change tool posts for repeatable positioning
• Fits lathes with 14 to 20 inch swing range
• Overall height of 2.5 inches with centerline height of 2.5625 inches
• Accepts cutting tools up to 0.75 inches maximum diameter
• No through-coolant passage - suitable for dry or flood coolant applied externally
• Weighs 7.63 pounds for solid, rigid chuck support during drilling operations

Compatibility

Designed for use with ALORIS CA-series quick-change tool post systems on lathes with a swing of 14 to 20 inches.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down the lathe and confirm the spindle is fully stopped before mounting or removing any tool holder. Seat the dovetail fully into the tool post and tighten the locking cam or wedge per the tool post manufacturer's procedure before engaging the lathe. Verify centerline alignment against the workpiece center before beginning a drilling pass.
