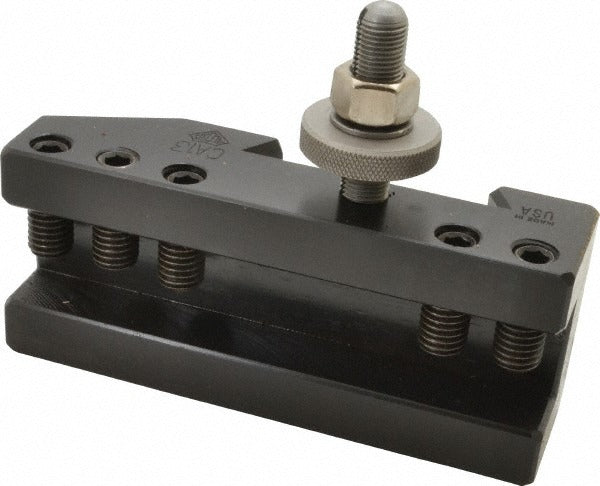

Aloris CA-13 Extension Tool Holder Series Ca Lathe

Product Description

The ALORIS CA-13 is a Series CA extension tool holder designed for use on engine lathes and turret lathes with a swing range of 14 to 20 inches. It mounts to compatible quick-change tool post systems and positions the cutting tool at a centerline height of 1-11/16 inches, with an overall height of 2-1/2 inches. The CA-13 accepts tool bits ranging from 1/2 inch up to 1 inch and handles a maximum cutting tool size of 1 inch. Extension holders are used when additional reach is needed to position the tool past obstructions or to access deep cuts that standard holders cannot reach. This holder is installed by machinists and tool room professionals performing turning operations.

The CA-13 is suited for manual engine lathes and CNC lathes with compatible Series CA quick-change tool post systems. Typical applications include turning, facing, and boring operations where extended tool reach is required. The holder is appropriate for both production and job-shop environments where precision tool positioning and repeatable setups are priorities. Through-coolant is not supported on this holder.

Key Features

• Extension holder design provides additional reach for deep cuts or obstructed workpiece access
• Accepts tool bits from 1/2 inch to 1 inch with a maximum cutting tool size of 1 inch
• Centerline height of 1-11/16 inches for consistent tool positioning
• Overall height of 2-1/2 inches fits within compact toolpost envelopes
• Dimension E of 3-3/4 inches provides the extension reach characteristic of the Number 13 design
• Compatible with lathes in the 14 to 20 inch swing range

Compatibility

Designed for use with Series CA quick-change tool post systems on lathes with a swing of 14 to 20 inches.

Installation Notes

Installation is performed by a qualified machinist or tool room technician. Power down and de-energize the lathe before mounting or removing any tool holder. Secure the holder firmly in the quick-change tool post and verify the cutting tool centerline aligns with the workpiece centerline before beginning any operation. Inspect all clamping hardware for wear or damage prior to use.
