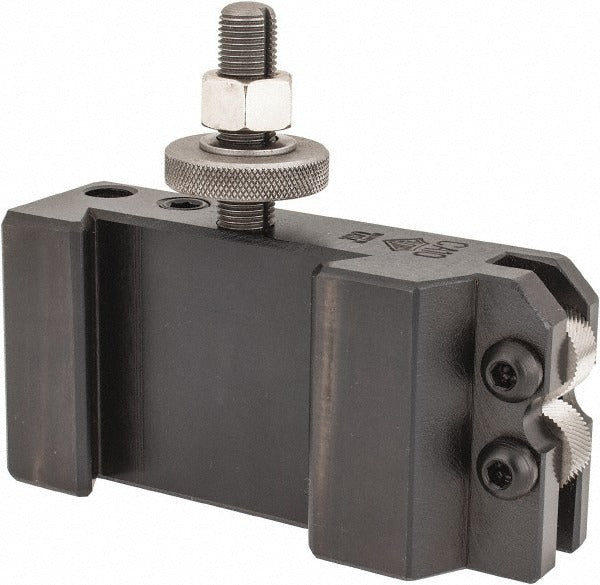

Aloris CA-10 Knurling Turning Facing Lathe Tool Post Holder

Product Description

The ALORIS CA-10 is a knurling, turning, and facing tool post holder designed for engine lathes with a swing range of 14 to 20 inches. Built for Series CA tool posts, this holder accommodates tool bits ranging from 1/2 inch to 1 inch and accepts cutting tools up to 3-3/4 inches maximum size. The overall height is 2-1/2 inches with a centerline height of 1-7/16 inches, giving machinists a consistent, repeatable tool setup. Weighing 3.63 pounds, the CA-10 is sized for mid-range engine lathes commonly found in production shops and machine trades. Licensed machinists and toolroom technicians are the primary installers.

The CA-10 is suited for turning, facing, and knurling operations on engine lathes in the 14- to 20-inch swing class. It fits into Series CA quick-change tool post systems, making it a practical holder for shops that run multiple tool stations on a single lathe. The holder is designed for through-coolant-free setups, making it appropriate for standard dry or flood-coolant operations where coolant is applied externally rather than through the holder body.

Key Features

• Supports knurling, turning, and facing operations in a single holder
• Compatible with lathes in the 14 to 20 inch swing range
• Accepts tool bits from 1/2 inch to 1 inch
• Maximum cutting tool size of 3-3/4 inches
• Overall height of 2-1/2 inches with 1-7/16 inch centerline height
• Designed for Series CA quick-change tool post systems

Compatibility

Designed for use with Series CA quick-change tool post systems on engine lathes with a swing of 14 to 20 inches.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Before mounting or changing holders, power down the lathe and confirm the spindle has come to a complete stop. Seat the holder fully in the tool post and secure the locking mechanism before initiating any cutting operation. Verify tool centerline height against the workpiece center before running the machine.
