Aloris CA-1 Turning Facing Lathe Tool Post Holder

Product Description

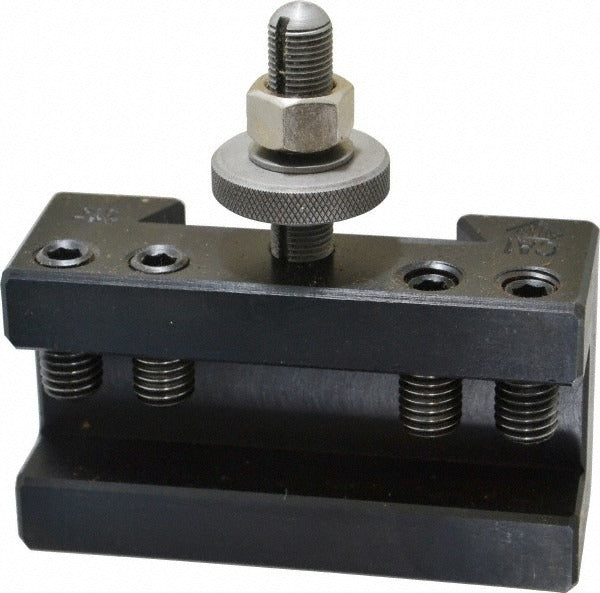

The ALORIS CA-1 is a turning and facing holder designed for use with quick-change lathe tool post systems in the CA series. It accepts cutting tools up to 1 inch and accommodates tool bit shanks ranging from 0.5 inches to 1 inch, making it a versatile choice for general turning and facing operations on the lathe. With an overall height of 2.5 inches and an overall length of 4.5 inches, the CA-1 provides a compact, rigid platform that positions the cutting tool on centerline at 1.6875 inches. Machinists and toolroom technicians working with lathes in the 14 to 20 inch swing range install this holder as part of a modular quick-change tooling setup to reduce tool change time and maintain repeatable centerline height across multiple operations.

The CA-1 is suited for lathes with a swing between 14 and 20 inches, covering a wide range of engine lathes and toolroom lathes commonly found in production shops, maintenance departments, and job shops. It is used in both light-production and precision single-piece turning applications where consistent tool positioning is required. The holder does not include through-coolant capability, so flood or mist coolant must be directed externally during cutting operations.

Key Features

• Fits lathes with 14 to 20 inch swing for broad compatibility across common shop lathes
• Accepts cutting tools up to 1 inch and tool bit shanks from 0.5 inches to 1 inch
• Centerline height of 1.6875 inches for accurate, repeatable tool positioning
• Overall length of 4.5 inches and overall height of 2.5 inches in a compact, rigid body
• Part of the CA series quick-change tool post system for fast, repeatable tool changes
• No through-coolant passage; compatible with external coolant delivery

Compatibility

Designed for use with ALORIS CA series quick-change tool post systems on lathes with a swing between 14 and 20 inches.

Installation Notes

Installation is performed by a machinist or toolroom technician familiar with lathe tooling setups. Power down and lock out the lathe spindle before mounting or adjusting any tool holder. Secure the holder firmly to the quick-change tool post according to the tool post manufacturer's torque and clamping guidance. Verify tool centerline height against the lathe's spindle centerline before beginning any cutting operation.
