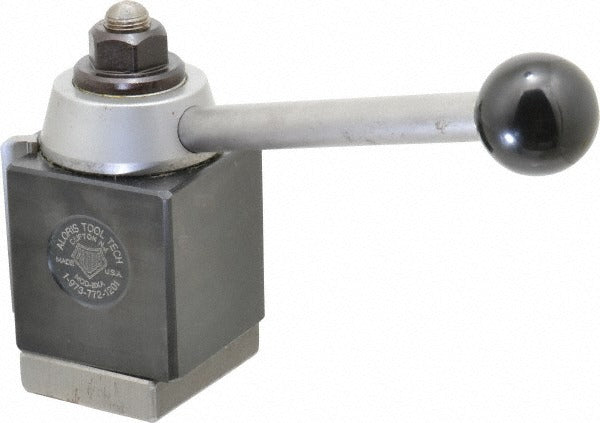

Aloris BXA Wedge Quick Change Tool Post 10-15 in Lathe

Product Description

The ALORIS BXA is a wedge-type quick change tool post designed for engine lathes with a swing range of 10 to 15 inches. It provides a centerline height range of 0.75 to 2.125 inches and an overall height of 5.5625 inches, making it suitable for a wide variety of turning, boring, and facing operations. The wedge-locking mechanism delivers rigid, repeatable tool positioning across 24 indexed positions. Weighing 8.5 pounds, this is a robust, professional-grade unit intended for installation by machinists and toolroom professionals working on mid-size manual lathes.

The BXA series is the standard choice for lathes in the 10 to 15 inch swing class, covering a broad range of general-purpose and production turning work. Typical applications include external turning, internal boring, threading, and parting operations on manual engine lathes found in job shops, maintenance facilities, and training environments. The 24-position indexing allows fast tool changeovers without re-indicating, reducing setup time between operations. A mounting wrench is included for installation on the compound rest stud.

Key Features

• Wedge-type locking mechanism for rigid, repeatable tool holding
• 24 indexed positions allow fast, accurate tool changes
• Fits lathes with 10 to 15 inch swing
• Centerline height range of 0.75 to 2.125 inches accommodates multiple holder styles
• 5.5625 inch overall height with 0.625 inch bolt hole diameter for compound rest mounting
• Includes mounting wrench for installation

Compatibility

Designed as an OEM-style replacement and upgrade tool post for manual engine lathes with a swing range of 10 to 15 inches and a 0.625 inch compound rest stud. Compatible with the full range of BXA-series quick change tool holders.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. The existing tool post and hardware should be removed from the compound rest before mounting. The BXA tool post mounts onto the compound rest stud using the included wrench; ensure the stud diameter matches the 0.625 inch bolt hole before installation. Always power down and lock out the lathe before removing or installing any tooling components.
