Aloris BXA-1IX Turning Facing Holder Bxa Series

Product Description

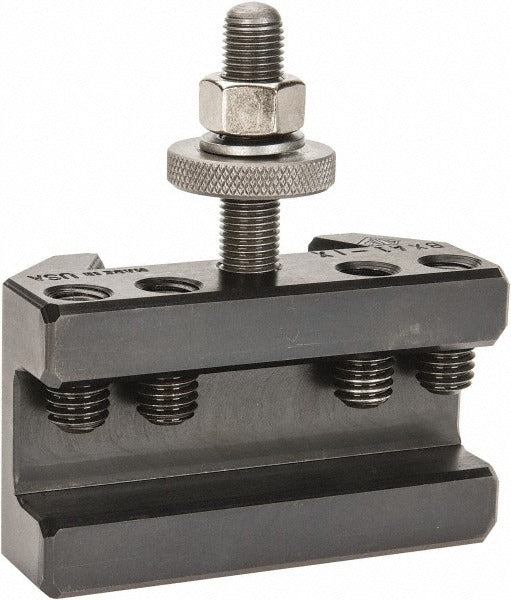

The ALORIS BXA-1IX is a Number 1X turning and facing holder built for the BXA series quick-change tool post system. It accepts cutting tools up to 3/4 inch and provides a centerline height of 1-3/16 inches, making it suited for precise turning and facing operations on mid-size lathes. The overall height is 1-3/4 inches. Designed for use on lathes with a swing between 10 and 15 inches, this holder is a standard component in a machinist's quick-change setup. Through-coolant is not supported on this model. It weighs 1.1 pounds.

This holder is used in manual and CNC lathe environments where a BXA quick-change tool post is already installed. It is appropriate for general turning and facing work in job shops, maintenance facilities, and production environments. The 10 to 15 inch lathe swing range makes it a common fit for bench lathes and mid-size engine lathes used by machinists, toolmakers, and industrial maintenance technicians.

Key Features

• BXA series quick-change tool post compatibility for fast, repeatable tool changes
• Accepts cutting tools up to 3/4 inch capacity
• Centerline height of 1-3/16 inches for accurate tool positioning
• Overall height of 1-3/4 inches fits standard BXA post geometry
• Designed for lathes with 10 to 15 inch swing
• No through-coolant - solid body construction

Compatibility

Designed as an OEM-style replacement and standard accessory for BXA series quick-change tool post systems on lathes with a swing of 10 to 15 inches.

Installation Notes

Installation is performed by a qualified machinist or toolmaker. Power down and disengage the lathe completely before mounting or adjusting any tool holder. Secure the holder fully in the quick-change post before initiating any cutting operation. Verify tool centerline height against the lathe spindle centerline before use.
