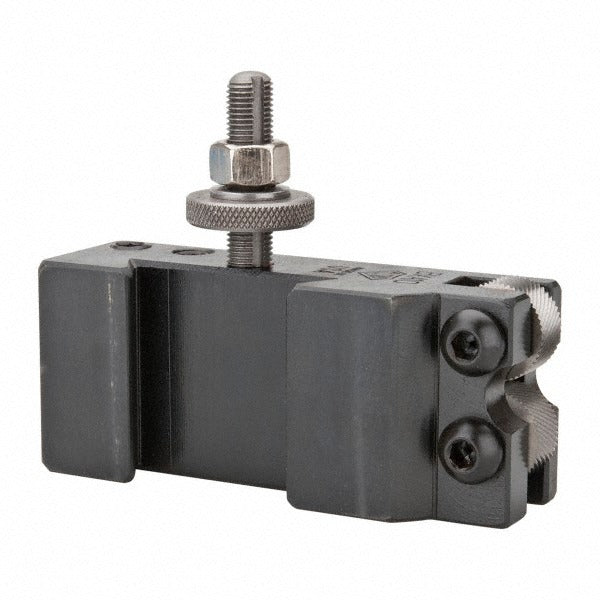

Aloris BXA-10 Knurling Turning Facing Lathe Tool Post Holder

Product Description

The ALORIS BXA-10 is a knurling, turning, and facing tool post holder designed for use on metal lathes with a swing capacity of 10 to 15 inches. Built for the BXA quick-change tool post series, this holder accepts tool bits ranging from 1/4 to 5/8 inches and accommodates cutting tools up to 2-5/8 inches in maximum size. The centerline height is 1 inch, with an overall height of 1-3/4 inches. It does not include through-coolant capability. Licensed machinists, toolroom operators, and production shop technicians install and use this holder during turning, facing, and knurling operations on the lathe.

The BXA-10 is suited for engine lathes and toolroom lathes in the 10- to 15-inch swing class. It is commonly found in job shops, maintenance facilities, and production environments where quick-change tooling is already established in the BXA series. This holder fits directly into a compatible BXA quick-change tool post without modification, enabling fast tool changes between knurling, turning, and facing operations during a single setup.

Key Features

• Accepts tool bits from 1/4 to 5/8 inches
• Maximum cutting tool size of 2-5/8 inches
• Centerline height of 1 inch for consistent tool alignment
• Overall height of 1-3/4 inches for low-profile mounting
• Compatible with BXA series quick-change tool posts on 10- to 15-inch swing lathes
• Supports knurling, turning, and facing operations from a single holder

Compatibility

Designed for use with BXA series quick-change tool posts on lathes with a swing of 10 to 15 inches.

Installation Notes

Installation and tool changes should be performed by a qualified machinist or toolroom technician familiar with quick-change lathe tooling systems. Power down and bring the lathe spindle to a full stop before mounting or removing any tool post holder. Secure the holder firmly in the tool post and verify centerline height alignment before taking a cut. Follow the lathe and tool post manufacturer guidelines for clamping force and holder seating.
