Aloris AXA-16 Turning Facing Holder Carbide Triangular Inserts

Product Description

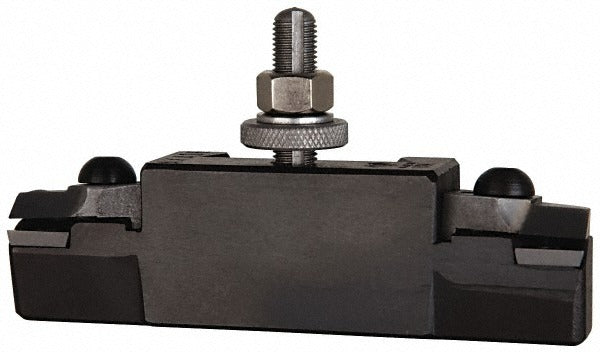

The ALORIS AXA-16 is a turning and facing tool post holder designed for carbide triangular inserts in AXA-series quick-change tool post systems. It accepts TPG322 inserts with a 3/8-inch inscribed circle and 1/8-inch thickness, providing rigid, repeatable insert positioning for turning and facing operations on the lathe. The holder stands 1-3/8 inches overall height with a 7/8-inch centerline height, making it compatible with lathes up to 12 inches swing. Machinists and toolroom technicians rely on this holder for production turning work where consistent insert geometry and quick tool changes matter. Weighing 1.5 pounds, it is a solid, compact unit built for shop use.

This holder is suited for manual and CNC lathes in the AXA size range, covering machines with up to 12 inches of swing. Typical applications include external turning and facing passes using triangular carbide inserts. It installs into any AXA-compatible quick-change tool post, allowing fast tool changes without re-indicating centerline height. Through-coolant is not supported on this holder.

Key Features

• Accepts TPG322 carbide triangular inserts with 3/8-inch inscribed circle
• Overall height of 1-3/8 inches with 7/8-inch centerline height for accurate tool positioning
• Fits AXA-series quick-change tool post systems on lathes up to 12 inches swing
• Designed for turning and facing operations
• No through-coolant, simplifying setup on standard machines
• Weighs 1.5 pounds for a rigid, low-mass hold

Compatibility

Designed for use with AXA-series quick-change tool post systems on lathes with up to 12 inches of swing. Accepts TPG322 triangular carbide inserts with a 3/8-inch inscribed circle and 1/8-inch insert thickness.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Power down and lock out the lathe spindle before mounting or removing any tool post holder. Seat the holder fully into the quick-change tool post and tighten the locking lever to the tool post manufacturer's recommended engagement before taking any cut. Verify insert seating and screw torque before beginning machining operations.
