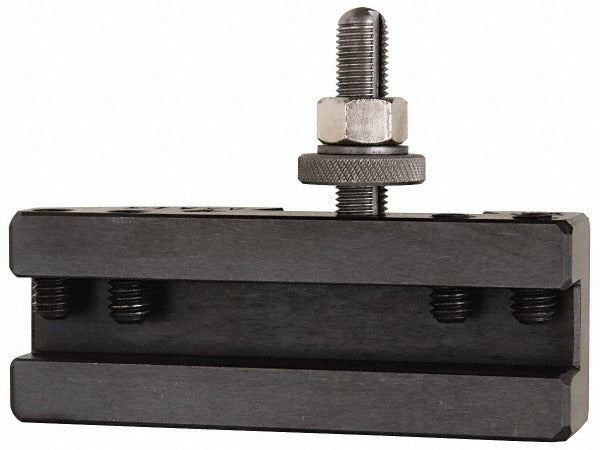

Aloris AXA-13 Extension Tool Holder Axa Series

Product Description

The ALORIS AXA-13 is an extension tool holder designed for use with AXA-series quick-change tool post systems on engine lathes. It accommodates cutting tools with a shank size up to 0.5 inches and supports tool bit ranges from 0.1875 inches to 0.5 inches, making it a practical choice for reaching into bores or extended turning operations where standard holders fall short. The overall height is 1.5 inches with a centerline height of 0.9375 inches, keeping tool-tip alignment consistent with AXA-standard geometry. This holder weighs 1.25 pounds and is installed by machinists and toolroom technicians on manual engine lathes rated for 12 inches swing and under.

The AXA-13 fits into AXA-series quick-change tool posts on engine lathes with a maximum swing of 12 inches, typical of benchtop and mid-size manual lathes found in job shops, maintenance facilities, and training environments. It is used when a standard-reach holder does not provide sufficient projection to reach the workpiece or when clearance around a fixture requires additional extension. Through-coolant is not supported on this holder. Installation is straightforward for any machinist familiar with AXA quick-change tooling systems.

Key Features

• AXA-series quick-change compatibility for fast, repeatable tool changes
• Extension-style holder adds reach for bores, shoulders, and tight-clearance cuts
• Accepts tool bit shanks from 0.1875 inches to 0.5 inches
• Centerline height of 0.9375 inches maintains consistent cutting geometry
• Dimension E of 2.5 inches provides the extension projection length
• No through-coolant - suited for dry or flood-from-outside cutting setups

Compatibility

Designed for use with AXA-series quick-change tool post systems on engine lathes with a swing of 12 inches and under.

Installation Notes

Installation is performed by a qualified machinist. Power down and lock out the lathe spindle drive before mounting or adjusting any tool holder. Seat the holder fully into the quick-change tool post and confirm the locking cam is fully engaged before taking a cut. Verify cutting-tool centerline height against the workpiece center before tightening to avoid chatter or tool deflection during extended-reach operations.
