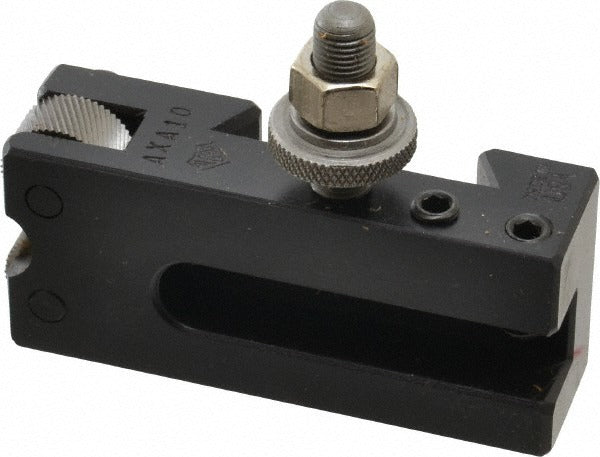

Aloris AXA-10 Knurling Turning Facing Lathe Tool Post Holder

Product Description

The ALORIS AXA-10 is a knurling, turning, and facing holder designed for use with AXA-series quick-change lathe tool posts. It accepts tool bits ranging from 3/16 to 1/2 inch and handles cutting tools up to 2-1/2 inches. The holder stands 1-9/16 inches overall height with a centerline height of 7/8 inch. Machining professionals and skilled tradespeople install this holder when setting up manual lathes for knurling passes or turning and facing operations. It is built for repeatable tool positioning and fast changeover in production or job-shop environments.

The AXA-10 is suited for lathes with a swing of 12 inches or under. It fits into the AXA quick-change tool post system, making it a standard choice for benchtop and mid-size engine lathes commonly found in machine shops, maintenance facilities, and vocational training environments. No through-coolant port is included, so this holder is intended for dry or flood-coolant setups where coolant is applied externally.

Key Features

• Accepts tool bits from 3/16 to 1/2 inch for versatile tooling compatibility
• Maximum cutting tool size of 2-1/2 inches
• Centerline height of 7/8 inch for consistent tool alignment
• Overall height of 1-9/16 inches for compact clearance on smaller lathes
• Compatible with lathes up to 12-inch swing
• No through-coolant - suited for external coolant or dry cutting applications

Compatibility

Designed for use with AXA-series quick-change lathe tool post systems on lathes with a swing of 12 inches or under.

Installation Notes

Installation is performed by a machinist or qualified lathe operator. Power down and lock out the lathe before mounting or removing any tool post holder. Ensure the quick-change tool post is securely seated on the compound rest before tightening the holder in place. Verify tool bit height alignment to the spindle centerline before resuming cuts.
