Aloris 5-SET Series Da Tool Post Holder Set 7 Piece

Product Description

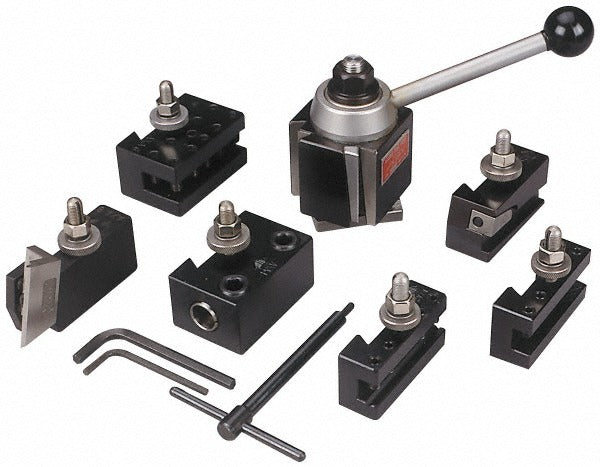

The ALORIS #5-SET is a seven-piece Series DA quick-change tool post holder set designed for engine lathes with a swing range of 17 to 48 inches. The set includes a tool post and six matched holders - Style 1, Style 2, Style 6, Style 8, Style 16, and Style 41D - covering the most common turning, boring, and cutoff applications in a single purchase. The bolt hole diameter is 1 inch, which is standard for the DA series. At 102.38 pounds, this is a substantial machinist-grade set intended for shop floor production and maintenance turning operations.

The Series DA system is suited for mid-to-large manual lathes found in industrial machine shops, tool rooms, and maintenance departments. The 17-to-48-inch swing compatibility covers a wide range of engine lathes in that class, making this set practical for shops running multiple machines in the same size range. The holder styles included address typical tooling needs: external turning, facing, boring bar mounting, and cutoff or parting operations. Machinists and toolroom operators are the primary installers and end users.

Key Features

• Seven-piece set includes tool post plus six holders: Style 1, Style 2, Style 6, Style 8, Style 16, and Style 41D
• Series DA sizing fits lathes with 17 to 48 inch swing
• 1-inch bolt hole diameter for secure mounting to the lathe compound
• No coolant-through configuration - standard dry or flood coolant from external supply
• Single-purchase set covers common turning, facing, boring, and parting operations

Compatibility

Designed for use with Series DA quick-change tool post systems on engine lathes with a swing of 17 to 48 inches and a 1-inch compound bolt hole diameter.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the lathe before mounting or removing any tool post hardware. The tool post is secured to the lathe compound rest via the compound bolt - verify the bolt hole diameter matches before installation. Follow the lathe and tool post manufacturer documentation for proper torque and alignment procedures specific to your machine.
