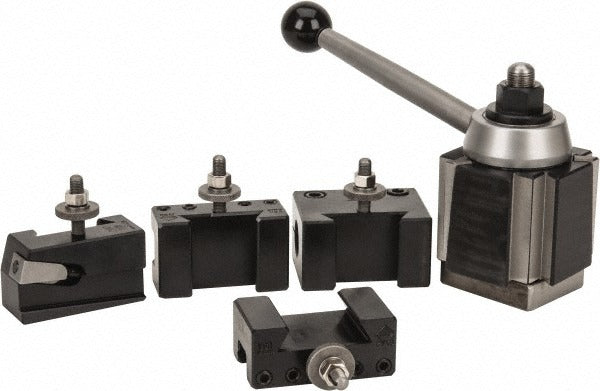

Aloris 3-BS Cxa Tool Post Holder Set 5 Piece

Product Description

The ALORIS 3-BS is a 5-piece CXA series quick-change tool post holder set designed for engine lathes with a swing range of 13 to 18 inches. The set ships with four dedicated holder styles plus the tool post itself, giving a machinist or toolroom tech a ready-to-use setup for the most common turning operations. At 23.35 pounds, the set is built to the rigidity standards expected of CXA tooling. The 3/4-inch bolt hole diameter suits the standard mounting boss on CXA-compatible banjos and compound rests.

This set is suited for use in job shops, toolrooms, and production environments where a mid-size lathe in the 13-to-18-inch swing class is the primary machine. The five included pieces cover turning, facing, boring, and parting operations without requiring separate holder purchases. It is typically installed and used by machinists, tool and die makers, and skilled trades personnel working on manual engine lathes.

Key Features

• 5-piece set covers turning, facing, boring, and parting operations in one package
• CXA series sizing fits lathes with 13 to 18 inches of swing
• Includes Style 1 Turning and Facing Holder for standard external operations
• Includes Style 2 Boring, Turning, and Facing Holder for versatile cutting tasks
• Includes Style 4D Heavy-Duty Boring Bar Holder for rigid bar support under load
• Includes Style 7 Universal Parting Blade Holder for cutoff work
• 3/4-inch bolt hole diameter for standard CXA post mounting

Compatibility

Designed for use with CXA series quick-change tool post systems on engine lathes with a swing of 13 to 18 inches and a 3/4-inch bolt hole diameter on the compound rest.

Installation Notes

Installation is performed by a machinist or qualified trades professional. Power down and bring the lathe spindle to a full stop before mounting or adjusting any tool post hardware. Secure the tool post to the compound rest using the correct stud and nut for the CXA bolt hole diameter before loading any holders. Verify holder seating and locking cam engagement before resuming cutting operations.
