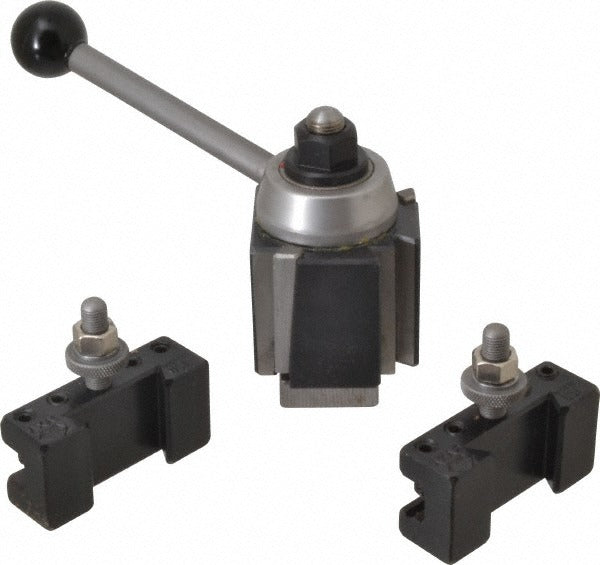

Aloris 1-IP Axa Tool Post Holder Set 3 Piece

Product Description

The ALORIS #1-IP is a three-piece AXA series quick-change tool post holder set designed for engine lathes with a swing range of 0 to 12 inches. The set includes a Style 1 Turning and Facing Holder, a Style 2 Boring, Turning, and Facing Holder, and a Tool Post with T-Nut for mounting. Intended for use on manual lathes in machine shops, maintenance departments, and toolroom environments, this set covers the most common turning and facing operations. The 9/16-inch bolt hole diameter and AXA series sizing are standard for this swing class. The complete package ships as a single unit with all components needed for initial installation.

The #1-IP set is suited for small to mid-size engine lathes with a swing of 0 to 12 inches. The AXA series is a widely adopted quick-change standard in production and job-shop settings, making this set appropriate for both new lathe setups and replacements of worn or damaged holders. Machinists and toolroom technicians performing turning, facing, and boring operations will find the included holder styles cover the most frequently used cutting tool positions. The set supports general-purpose metal removal work on ferrous and non-ferrous stock.

Key Features

• AXA series sizing fits lathes with 0 to 12 inch swing
• Three-piece set includes Style 1 Turning and Facing Holder, Style 2 Boring, Turning, and Facing Holder, and Tool Post with T-Nut
• 9/16-inch bolt hole diameter for standard AXA-compatible tool post mounting
• No coolant-through passages, keeping design simple and maintenance-free
• Complete out-of-box setup with all mounting hardware included

Compatibility

Designed for use with AXA series quick-change tool post systems on engine lathes with a swing range of 0 to 12 inches and a 9/16-inch bolt hole diameter.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the lathe spindle drive before mounting or adjusting the tool post. Secure the T-Nut into the lathe compound rest slot and torque the tool post hold-down bolt to the lathe manufacturer's specification. Verify that holder dovetails engage the tool post fully and that the locking cam operates without binding before resuming cutting operations.
