Aloris 1-BS Axa Tool Post Holder Set 5 Pc Lathe

Product Description

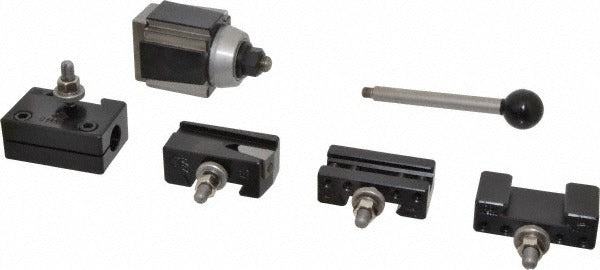

The ALORIS #1-BS is a five-piece AXA-series quick-change tool post holder set designed for lathes with a swing range of 0 to 12 inches. The set includes a Style 1 Turning and Facing Holder, a Style 2 Boring, Turning, and Facing Holder, a Style 4D Heavy-Duty Boring Bar Holder, a Style 7 Universal Parting Blade Holder, and a Tool Post. It gives machinists a versatile starting kit for turning, facing, boring, and parting operations on smaller engine lathes and toolroom lathes. The bolt hole diameter is 9/16 inches, and the complete set weighs 11 pounds.

This set is suited for use on light to mid-size manual lathes in job shops, tool rooms, maintenance facilities, and vocational machine shops. The AXA series addresses lathes up to 12 inches of swing, making it a common fit for bench lathes and smaller engine lathes used in precision part production, prototyping, and general machining work. Machinists looking to equip a lathe from scratch will find this set covers the most frequently needed holder styles in one purchase.

Key Features

• Five-piece set covering turning, facing, boring, heavy-duty boring bar, and parting blade operations
• AXA series sizing fits lathes with 0 to 12 inch swing
• Style 4D Heavy-Duty Boring Bar Holder handles demanding internal machining tasks
• Style 7 Universal Parting Blade Holder supports cutoff and grooving work
• 9/16 inch bolt hole diameter for tool post mounting
• No coolant-through configuration - standard dry or flood coolant from external source

Compatibility

Designed for use with AXA-series quick-change tool post systems on lathes with a swing of 0 to 12 inches.

Installation Notes

Installation is performed by the machinist or lathe operator. Power down and de-energize the lathe completely before mounting or swapping holders. Ensure the tool post stud and bolt hole alignment are correct before tightening to avoid misalignment under cutting loads. Verify that all holder locking mechanisms are fully engaged before beginning any cutting operation.
