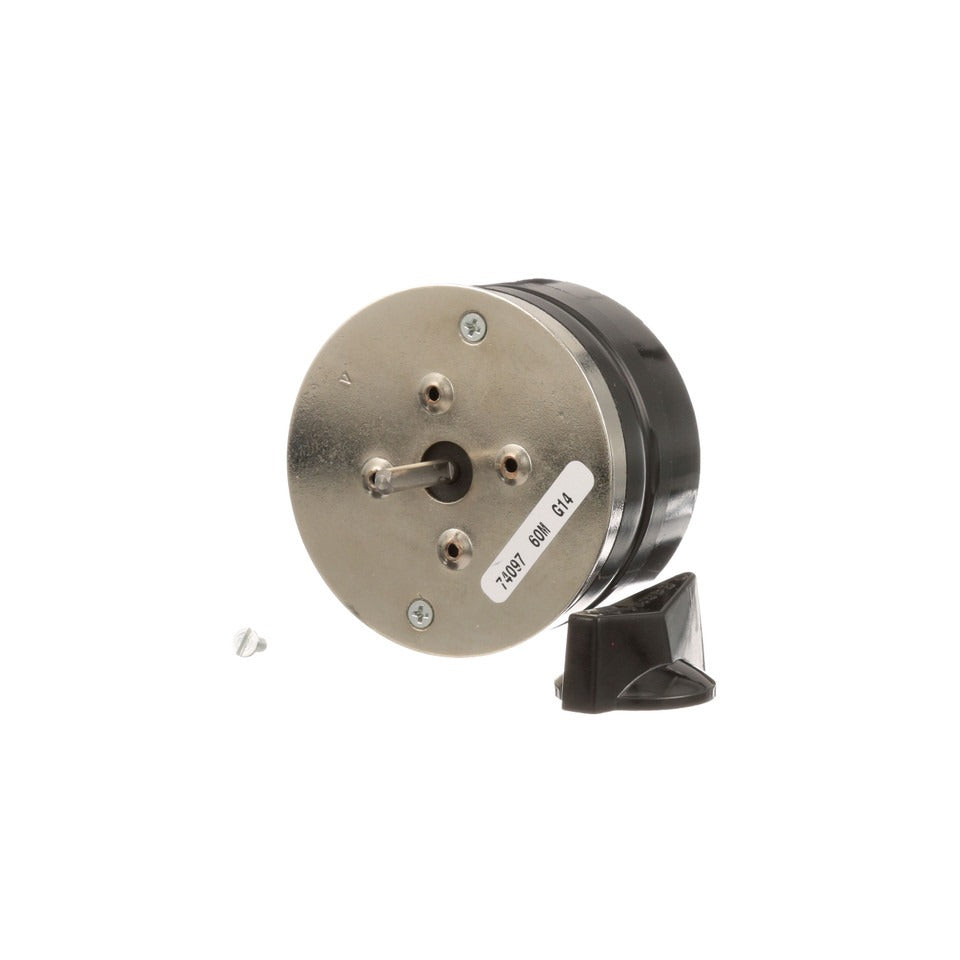

Allpoints Foodservice 42-1053 60 Min Mechanical Timer

Product Description

The ALLPOINTS FOODSERVICE 42-1053 is a 60-minute mechanical timer with knob designed for use in commercial foodservice equipment. It operates with a single-pole double-throw (SPDT) switch action and features both normally open (N.O.) and normally closed (N.C.) contacts in an ON/ON function configuration. The unit connects via three screw terminals, making field installation straightforward for qualified technicians. Rated at 20 amps, this timer delivers the switching capacity required for commercial cooking and steam equipment applications. It is a direct mechanical replacement that restores proper timed-cycle control to affected equipment.

This timer is suited for commercial foodservice environments where timed heating or cooking cycles are controlled by a mechanical switch. It is a direct replacement for the Cleveland 20476 timer and is compatible with Cleveland CET-5 equipment. For new-style Cleveland units, use part 421524 instead. For Cleveland CLES43905 applications, use AP part 8012105. The matching knob for this timer is sold separately as part 22-1111. For the dial plate marked 0 to 55, order part 22-1110 separately.

Key Features

• 60-minute mechanical timing range for timed-cycle foodservice equipment control
• SPDT switch action with N.O. and N.C. contacts in ON/ON function configuration
• 20-amp rating suitable for commercial cooking equipment loads
• Three screw terminal connections for straightforward field wiring
• Includes knob; matching dial plate (22-1110) and replacement knob (22-1111) available separately
• Direct replacement for Cleveland 20476

Compatibility

Direct replacement for Cleveland part 20476, compatible with Cleveland CET-5 equipment. For new-style Cleveland units, use 421524. For CLES43905 applications, use AP part 8012105.

Installation Notes

Installation should be performed by a qualified commercial appliance technician. De-energize and lock out the equipment before removing the existing timer or making any wiring connections. Verify terminal assignments against the equipment wiring diagram before securing screw terminals. Confirm the replacement timer range and switch configuration match the original unit specifications before returning equipment to service.
