Allied Tube Conduit PV1000LT100 Liquid Tight Connector 1 in

Product Description

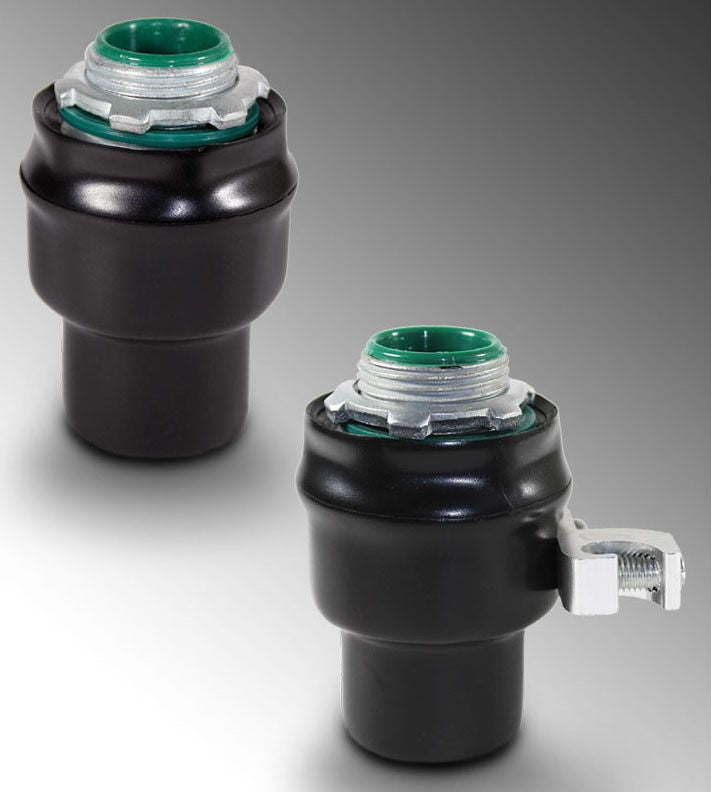

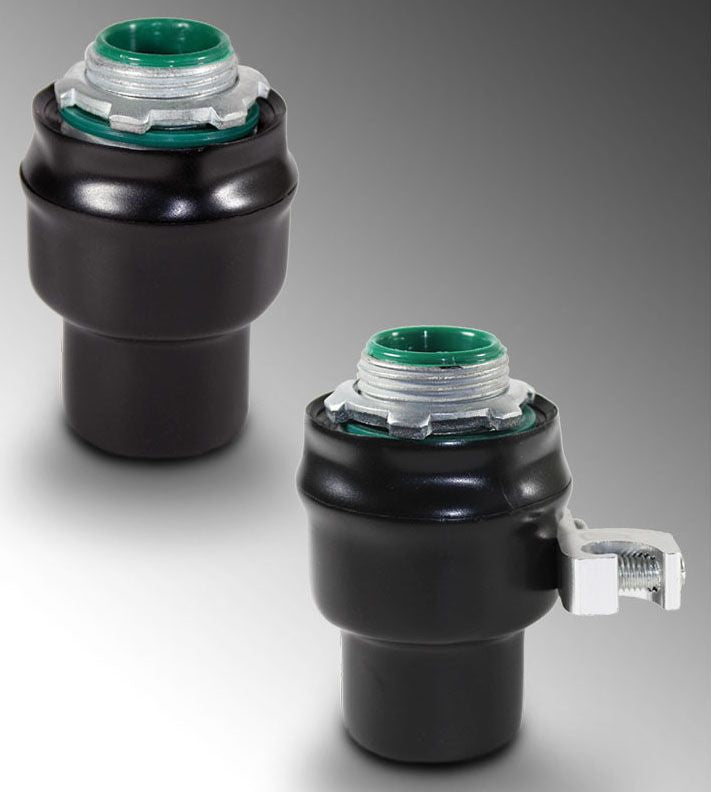

The ALLIED TUBE CONDUIT PV1000LT100 is a straight-type liquid tight conduit connector designed for use with 1-inch trade size PVC-coated galvanized rigid conduit. Built from 0.04-inch PVC-coated steel, it provides a secure, moisture-resistant termination at enclosure knockouts and junction boxes. The fitting includes a flexible sleeve on the conduit side and a sealing form on both the box side and the mating portion of the gland, ensuring a watertight assembly. Licensed electricians and electrical contractors install this connector as part of liquid tight conduit systems in wet, damp, or corrosive environments where standard rigid fittings are not suitable.

This connector is used in commercial, industrial, and residential electrical installations where conduit runs terminate at panels, enclosures, motors, or junction boxes exposed to moisture, oils, or contaminants. The straight configuration suits direct, perpendicular entry into box knockouts. It is appropriate for indoor and outdoor applications wherever liquid tight flexible or rigid PVC-coated conduit is run, including mechanical rooms, pump installations, outdoor lighting circuits, and industrial equipment connections.

Key Features

• Straight-type configuration for direct, perpendicular conduit-to-enclosure entry
• Flexible sleeve on the conduit side sized specifically to tighten around PVC-coated conduit
• Sealing form on both the box side and the mating part of the gland for a watertight seal
• 0.04-inch PVC-coated steel construction resists corrosion in wet and damp locations
• Pulling compound recommended for ease of installation onto PVC conduit
• Listed to UL 51B and CSA C22.2 for compliance with North American electrical standards

Compatibility

Designed as an OEM-style replacement and standard fitting for 1-inch trade size PVC-coated galvanized rigid liquid tight conduit systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and lock out the panel before making any conduit terminations at enclosures or equipment. Use a pulling compound on the conduit end to ease sleeve installation and avoid damage to the PVC coating. Ensure the gland nut is tightened sufficiently to compress the sealing form and achieve a watertight connection, but do not over-torque the fitting body against the enclosure wall.

Technical Specifications

• Trade Size: 1 inch
• Type: Straight
• Material: 0.04 inch PVC Coated Steel
• Overall Length: 3.81 inches
• Overall Width: 1.96 inches
• Approvals: UL 51B, CSA C22.2
• Country of Origin: CN

Standard Information

• Brand: ALLIED TUBE CONDUIT
• Manufacturer Part Number: PV1000LT100
