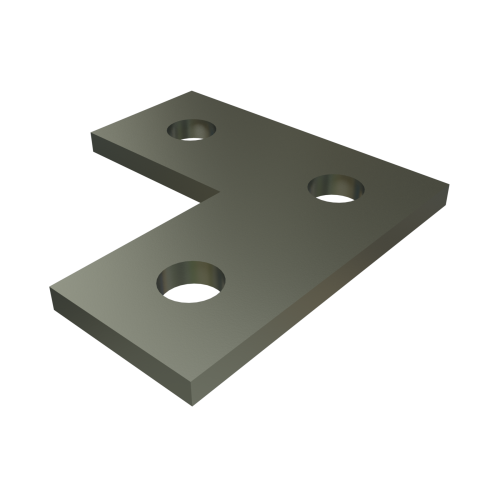

ALLIED PS718-EG Power-Strut 3-Hole Flat Angle Plate Fitting

Product Description

The ALLIED PS718-EG Power-Strut 3-Hole Flat Angle Plate Fitting is designed for reliable structural support. It is made from durable steel that complies with ASTM standards. This fitting allows the use of 1/2-inch fasteners through three specially designed holes.

• Constructed from steel meeting ASTM standards for strength.
• Three holes with a diameter of 9/16 inch for secure fastener installation.
• Electrogalvanized finish for enhanced corrosion resistance.

Product Highlights

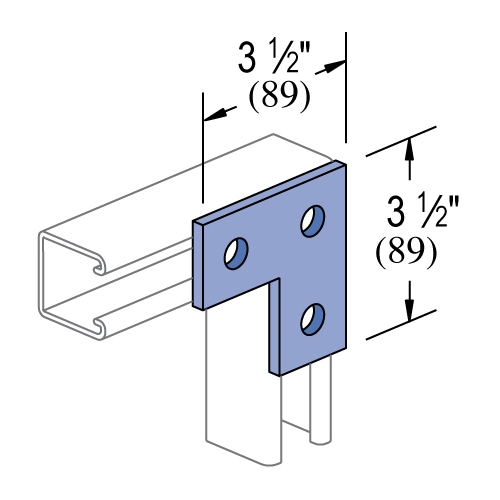

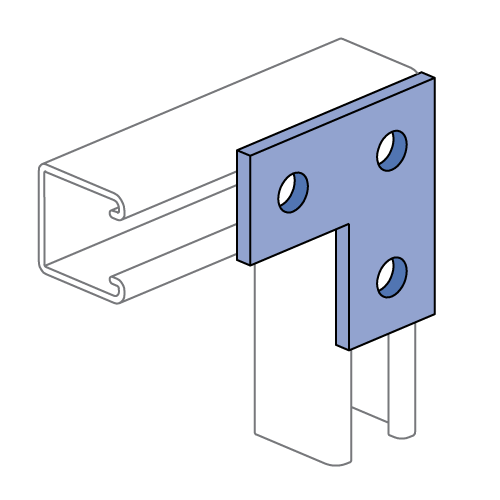

This fitting is versatile for numerous applications, providing essential support in various constructions.

Product Information

Standard Information

• Brand: ALLIED
• MPN: PS718-EG

Technical Specifications

• Hole Diameter: 9/16 inch (14mm)
• Hole Spacing (From End): 13/16 inch (21mm)
• Hole Spacing (On-Center): 1 7/8 inch (48mm)
• Width: 1 5/8 inch (41mm)
• Thickness: 1/4 inch (6.4mm) or 0.220 inch (5.6mm)
• Base Metal: Steel conforms to ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, A635
• Electrogalvanized (EG): Conforms to ASTM B633, Type III SC1
• No. of Holes: 3
• Weight: 0.58 lb per piece
