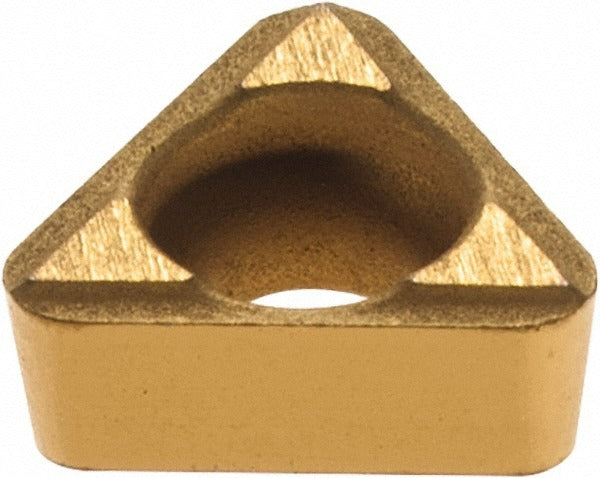

Allied Machine TCGT-06T108 Turning Insert Carbide

Product Description

The ALLIED MACHINE AND ENGINEERING TCGT-06T108 is a solid carbide turning insert designed for precision metal-cutting operations on CNC lathes and manual turning centers. Conforming to the TCGT insert style, it features a 60-degree triangular shape with a 0.79 mm (0.0310 inch) corner radius, a 7-degree relief angle, and a screw-type holding method. This insert is intended for finishing and light turning passes where edge sharpness and dimensional consistency are critical. It is installed and replaced by machinists and CNC operators working in production or job-shop environments.

The TCGT-06T108 is suited for turning applications where a positive-rake, sharp-edged carbide insert is required, typically on non-ferrous metals, aluminum alloys, and select ferrous materials at moderate-to-high cutting speeds. The T-style chip breaker geometry helps manage chip flow during continuous turning cuts. This insert fits standard TCGT-compatible toolholders with screw clamping, making it a straightforward drop-in for existing setups. It meets both ANSI and ISO insert standards, ensuring broad toolholder compatibility across common machine platforms.

Key Features

• Solid carbide construction for consistent edge integrity and wear resistance
• 60-degree triangular insert shape (ISO shape code T) provides three usable cutting edges
• 0.79 mm corner radius (0.0310 inch) suited for fine-finish turning operations
• 7-degree relief angle (clearance code C) reduces flank contact and heat buildup
• Screw-type insert holding method for secure, repeatable seating in the toolholder pocket
• Meets ANSI and ISO standards for interchangeability with compatible TCGT toolholders

Compatibility

Designed for use with TCGT-style screw-clamp toolholders conforming to ANSI and ISO insert mounting standards. Verify toolholder pocket geometry and insert size code 06 compatibility before installation.

Installation Notes

This insert is installed by machinists or CNC operators following standard insert-change procedures. Power down and lock out the machine spindle before accessing the toolholder. Use the appropriate torx or hex key to loosen the clamp screw, seat the insert fully into the pocket, and retorque the screw per the toolholder manufacturer specification. Inspect the cutting edge and chip breaker geometry before returning the machine to service.
