Allied Machine OP-060408-PW Indexable Drill Insert AM300 Carbide

Product Description

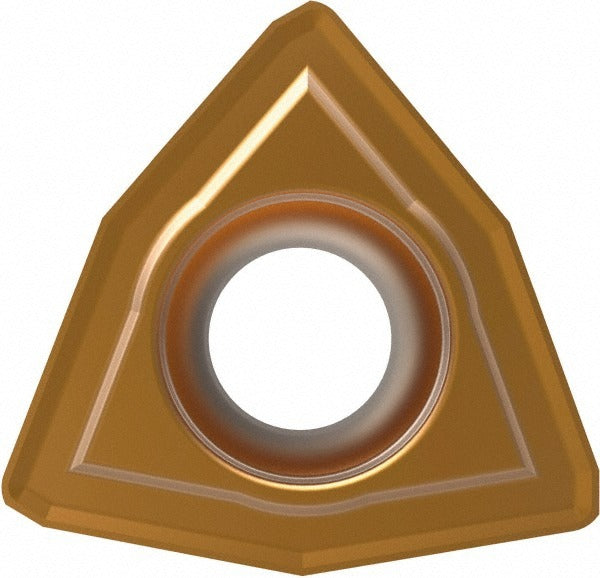

The ALLIED MACHINE AND ENGINEERING OP-060408-PW is a solid carbide indexable drill insert designed for use with OP06-style indexable drilling systems. Built to the AM300 manufacturer grade with a C5 material grade designation, this trigon-shaped insert features a 3/8 inch (0.3750 inch) inscribed circle and a coated finish for extended tool life. It is engineered for productive drilling operations in non-ferrous metals and steel, making it a reliable consumable for CNC machining centers and drill press setups in production shop environments. Licensed machinists and tooling technicians are the typical end users for this type of insert.

This insert is suited for indexable drilling applications in both ferrous and non-ferrous workpiece materials, including steel and non-ferrous metal stock. The OP06 insert style fits Allied Machine OP-series indexable drill bodies. It is appropriate for production environments requiring repeatable hole quality and consistent tool geometry across high-volume runs. The coated solid carbide construction supports demanding cut conditions where insert durability and edge retention are priorities.

Key Features

• Solid carbide construction with AM300 grade coating for wear resistance
• Trigon shape with 3/8 inch inscribed circle for precise indexable fit
• C5 material grade suitable for steel and non-ferrous metal applications
• OP06 insert style for use in Allied Machine OP-series drill bodies
• Manufactured under ISO 9001:2015 certified quality standards

Compatibility

Designed for use with Allied Machine and Engineering OP06-style indexable drill bodies. Compatible with primary workpiece materials designated N (non-ferrous metal) and P (steel) per ISO workpiece material classification.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist with the machine fully powered down and spindle locked. Use the appropriate torque wrench or insert key specified for the drill body to seat the insert securely — avoid over-tightening which can crack the carbide. Inspect the insert pocket for chips or debris before seating a new insert. Follow the drill body manufacturer guidelines for insert orientation and clamping sequence.
