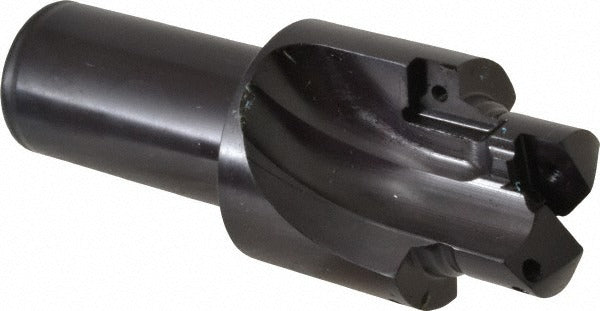

Allied Machine J1926-162-125F Indexable Porting Tool

Product Description

The ALLIED MACHINE AND ENGINEERING J1926-162-125F is an indexable porting tool from the AccuPort 432 series, designed for precision port machining to ISO 11926-1 and SAE J1926-1/MS-16142 standards. It features a 1.231-inch pilot diameter, a 1.907-inch spotface diameter, and a 1.400-inch porting diameter. The tool accepts two spade blade inserts simultaneously, allowing combined spotfacing and porting operations in a single setup. With a coated construction and universal primary workpiece material compatibility, it suits a broad range of production machining environments. A licensed machinist or toolroom technician performs the installation and setup.

This porting tool is built for hydraulic port machining applications requiring 1-5/16-12 thread ports at Tube Dash 16 sizing. It fits horizontal and vertical machining centers as well as manual mills where port preparation is performed to ISO 11926-1 and SAE J1926-1/MS-16142 specifications. The tool is suited for both production runs and single-piece hydraulic manifold work. Non-through coolant at normal pressure is supported. Compatible insert styles are J1926, with compatible insert size codes 452H-1.231 and 4C12H-1.231.

Key Features

• AccuPort 432 series indexable porting tool for ISO 11926-1 and SAE J1926-1/MS-16142 port standards
• Takes 2 spade blade inserts for simultaneous spotfacing and porting in one pass
• Compatible with J1926-08-C3H and J1926-08-C5A inserts
• Coated construction supports universal workpiece materials including H, K, N, and P material codes
• 15-degree seal angle and 15-degree porting angle for precise port geometry
• Non-through coolant design with normal pressure coolant support

Compatibility

Designed for use with J1926-series spade blade inserts, including J1926-08-C3H and J1926-08-C5A. Compatible insert size codes are 452H-1.231 and 4C12H-1.231. Conforms to ISO 11926-1 and SAE J1926-1/MS-16142 port standards for 1-5/16-12 thread, Tube Dash 16 applications.

Installation Notes

Installation should be performed by a qualified machinist familiar with indexable tooling and hydraulic port preparation. Power down and lock out the machine spindle before indexing or replacing inserts. Verify shank engagement and tool runout before initiating a cut. Follow the machine tool manufacturer torque specifications for drawbar and toolholder retention.
